PTA20N50A Datasheet, Mosfet, PIP

PTA20N50A Features

  • Mosfet Proprietary New Planar Technology RDS(ON),typ.=0.24 Ω@VGS=10V Low Gate Charge Minimize Switching Loss Fast Recovery Body Diode PTP20N50A PTA20N50A BVDSS 500V RDS(ON),typ. 0.24Ω ID 2

PDF File Details

Part number:

PTA20N50A

Manufacturer:

PIP

File Size:

602.19kb

Download:

📄 Datasheet

Description:

500v n-channel mosfet.

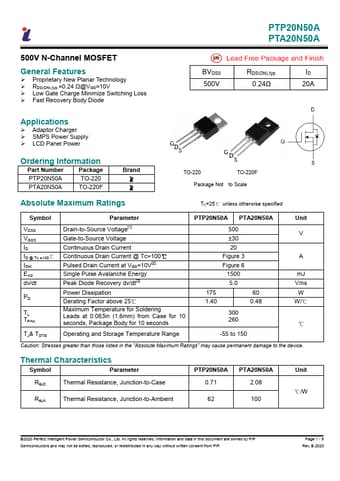

Datasheet Preview: PTA20N50A 📥 Download PDF (602.19kb)
Page 2 of PTA20N50A Page 3 of PTA20N50A

PTA20N50A Application

  • Applications Adaptor Charger SMPS Power Supply LCD Panel Power Ordering Information Part Number Package PTP20N50A TO-220 PTA20N50A TO-220F Br
