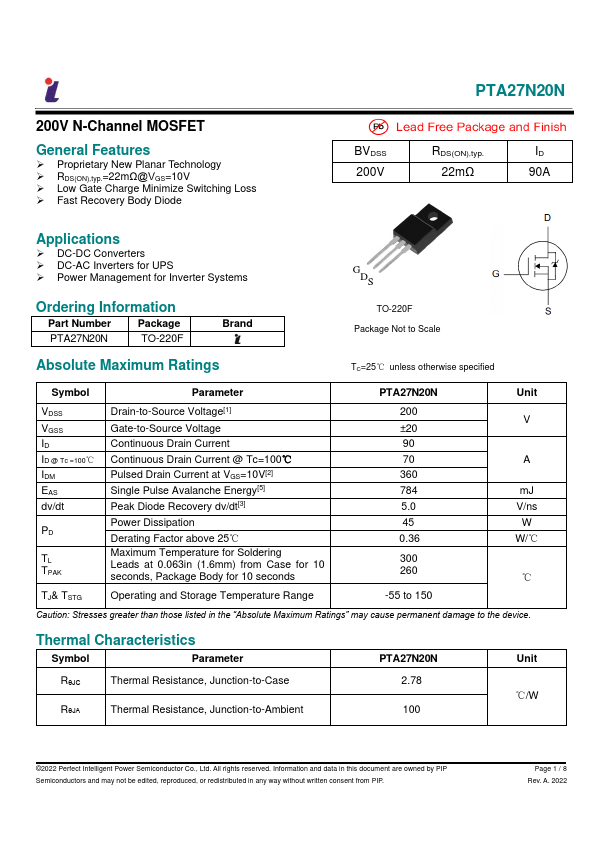

PTA27N20N
Features
- Proprietary New Planar Technology
- RDS(ON),typ.=22mΩ@VGS=10V
- Low Gate Charge Minimize Switching Loss
- Fast Recovery Body Diode
BVDSS 200V
RDS(ON),typ. 22mΩ
ID 90A
Applications
- DC-DC Converters
- DC-AC Inverters for UPS
- Power Management for Inverter Systems
G DS
Ordering Information
Part Number Package
TO-220F
Brand
TO-220F Package Not to Scale
Absolute Maximum Ratings
TC=25℃ unless otherwise specified
Symbol
Parameter
Unit
VDSS VGSS ID ID @ Tc =100℃ IDM EAS dv/dt
TL TPAK
Drain-to-Source Voltage[1]
Gate-to-Source Voltage Continuous Drain Current Continuous Drain Current @ Tc=100℃ Pulsed Drain Current at VGS=10V[2] Single Pulse Avalanche Energy[5] Peak Diode Recovery dv/dt[3]
Power Dissipation Derating Factor above 25℃ Maximum Temperature for Soldering Leads at 0.063in (1.6mm) from Case for 10 seconds, Package Body for 10 seconds
200 ±20 90 70 360 784 5.0 45 0.36
300 260
A m J V/ns
W W/℃
℃
TJ& TSTG
Operating...
