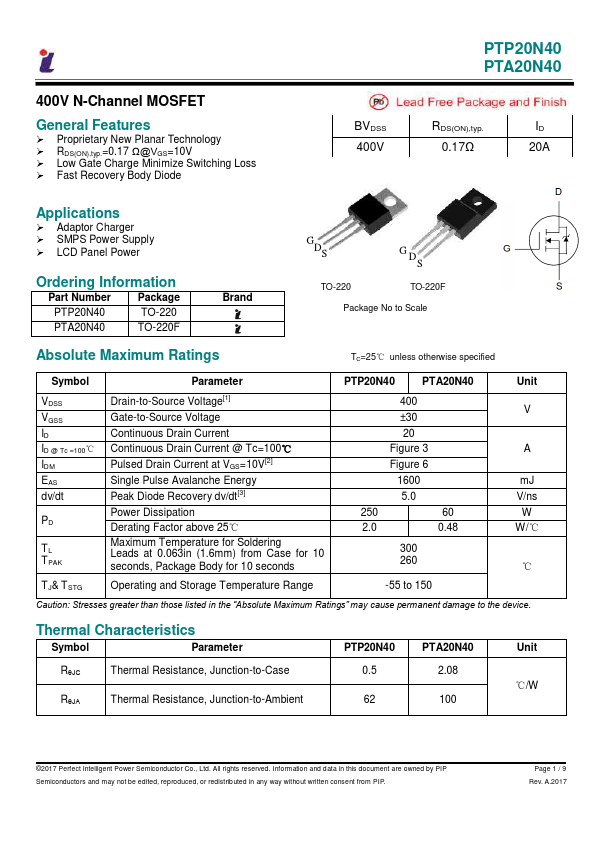

PTP20N40
Features
- Proprietary New Planar Technology
- RDS(ON),typ.=0.17 Ω@VGS=10V
- Low Gate Charge Minimize Switching Loss
- Fast Recovery Body Diode
PTP20N40 PTA20N40
BVDSS 400V
RDS(ON),typ. 0.17Ω
ID 20A
Applications
- Adaptor Charger
- SMPS Power Supply
- LCD Panel Power
Ordering Information
Part Number
Package
TO-220
PTA20N40
TO-220F
Brand
G DS
G DS
TO-220
TO-220F
Package No to Scale
Absolute Maximum Ratings
TC=25℃ unless otherwise specified
Symbol
Parameter
PTP20N40 PTA20N40
Unit
VDSS VGSS ID ID @ Tc =100℃ IDM EAS dv/dt
TL TPAK
Drain-to-Source Voltage[1]
Gate-to-Source Voltage
Continuous Drain Current Continuous Drain Current @ Tc=100℃ Pulsed Drain Current at VGS=10V[2] Single Pulse Avalanche Energy Peak Diode Recovery dv/dt[3]
Power Dissipation Derating Factor above 25℃ Maximum Temperature for Soldering Leads at 0.063in (1.6mm) from Case for 10 seconds, Package Body for 10...
