SPTB10R06, SPTP10R06 100V N-Channel MOSFET

PIP

Description

100V N-Channel MOSFET General .

📥 Download Datasheet

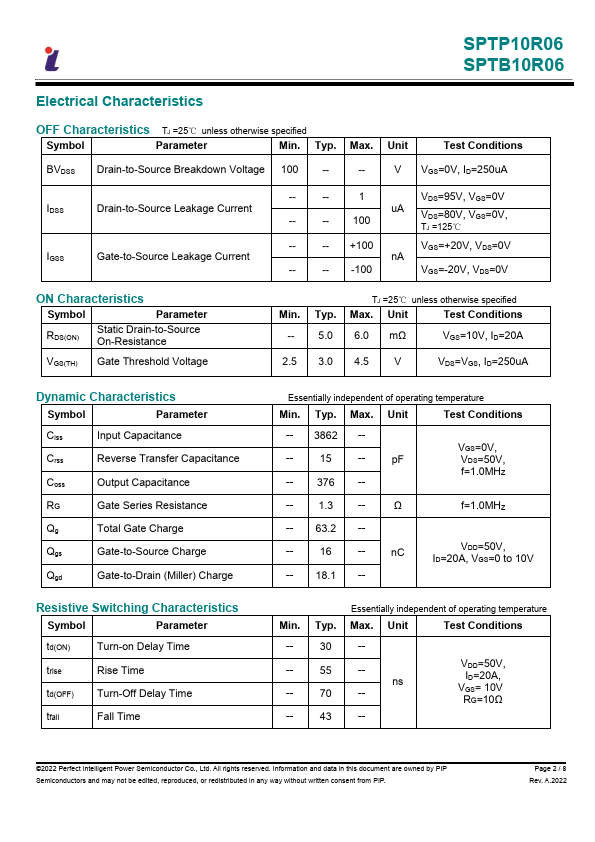

SPTB10R06 Datasheet Preview — This datasheet PDF includes multiple part numbers: SPTB10R06, SPTP10R06. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SPTB10R06, SPTP10R06
Manufacturer: PIP
File Size: 1.73 MB
Datasheet: SPTP10R06-PIP.pdf
Description: 100V N-Channel MOSFET
Note: This datasheet PDF includes multiple part numbers: SPTB10R06, SPTP10R06.
Please refer to the document for exact specifications by model.

Features

* High speed power switching
* RDS(ON),typ. =5.0mΩ@VGS=10V
* Enhanced body diode dv/dt capability

Applications

* Synchronous rectification in SMPS
* Hard switching and High speed circuit
* DC/DC in telecoms and industrial Ordering Information Part Number Package SPTP10R06 TO-220 SPTB10R06 TO-263 Brand GDS TO-220 Package Not to Scale GD S TO-263 Package No to Scale Absolute Maximum Ratings T
