SPTF60R70FD - 600V N-ch Multi-Epi Super-Junction MOSFET

PIP

The SPTF60R70FD by PIP is a 600V N-ch Multi-Epi Super-Junction MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

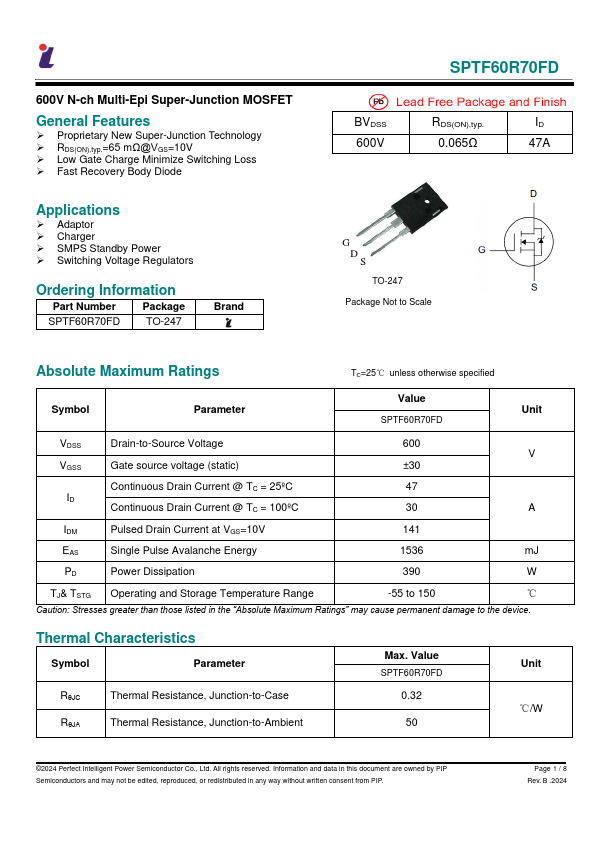

SPTF60R70FD 600V N-ch Multi-Epi Super-Junction MOSFET by PIP - Datasheet Preview — Official preview page of the SPTF60R70FD 600V N-ch Multi-Epi Super-Junction MOSFET datasheet (PIP).

Datasheet Details

Part number	SPTF60R70FD
Manufacturer	PIP
File Size	727.73 KB
Description	600V N-ch Multi-Epi Super-Junction MOSFET
Datasheet	SPTF60R70FD-PIP.pdf

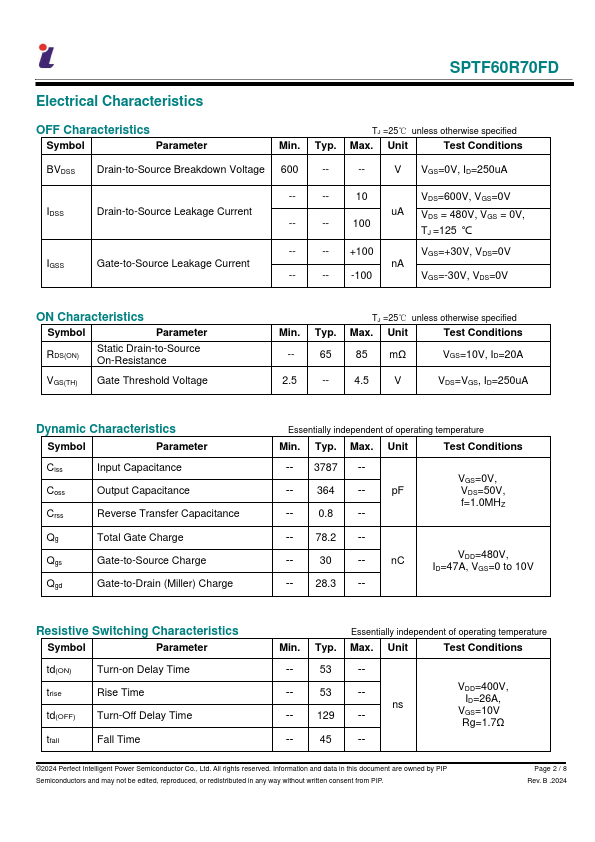

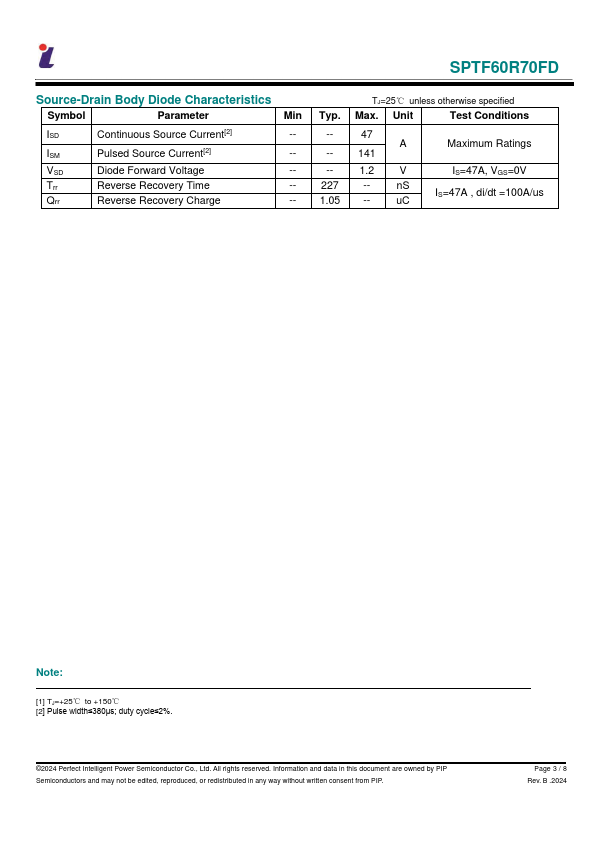

Additional preview pages of the SPTF60R70FD datasheet.

SPTF60R70FD Product details

Features

Proprietary New Super-Junction Technology.
RDS(ON),typ. =65 mΩ@VGS=10V.
Low Gate Charge Minimize Switching Loss.
Fast Recovery Body Diode.
