AT-0104HD Datasheet - PIS

AT-0104HD INVERTER

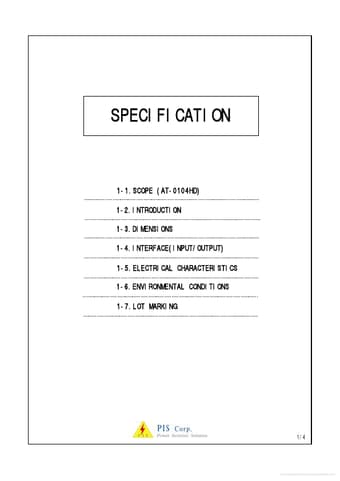

SPECIFICATION 1-1.SCOPE (AT-0104HD) 1-2.INTRODUCTION 1-3.DIMENSIONS 1-4.INTERFACE(INPUT/OUTPUT) 1-5.ELECTRICAL CHARACTERISTICS 1-6.ENVIRONMENTAL CONDITIONS 1-7.LOT MARKING 1/4 Free Datasheet http://www.datasheet4u.com/ 1.SPECIFICATION 1-1)Scope This specification is for inverter of 10.4 ~ 14".1, 1CCFL LCD module . (Applicable panel : HD - HT12X11, SAMSUNG 10.4~14.1" UNIPAC 8.4~10.4", PVI 10.4" LCD MODULE etc.) 1-2)Introduction This inverter is a SMPS using DC input voltage (DC 10-13.2V) At D.

AT-0104HD Datasheet (102.93 KB)
