2SB772SQ - PNP Transistor

2SB772SQ Description

2SB772SQ Features

* High current output up to 3A
* Low saturation votage
* Complement to 2SB882SQ Equivalent Circuit 2.Collector 1.Base 3. Emitter Absolute Maximum Ratings Ratings at 25℃ ambient temperature unless otherwise specified. Parameter Collector Base Voltage Collector Emitter Voltage Emitter Bas

📥 Download Datasheet

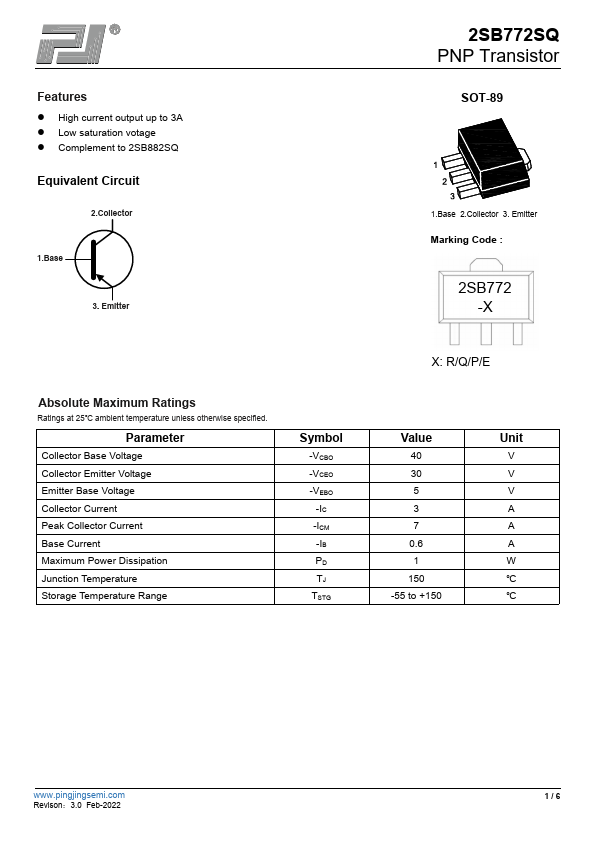

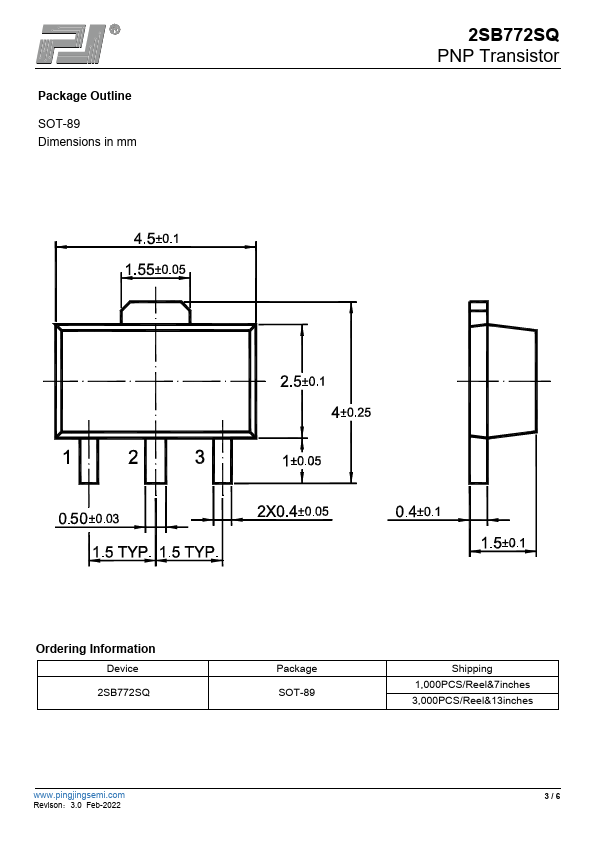

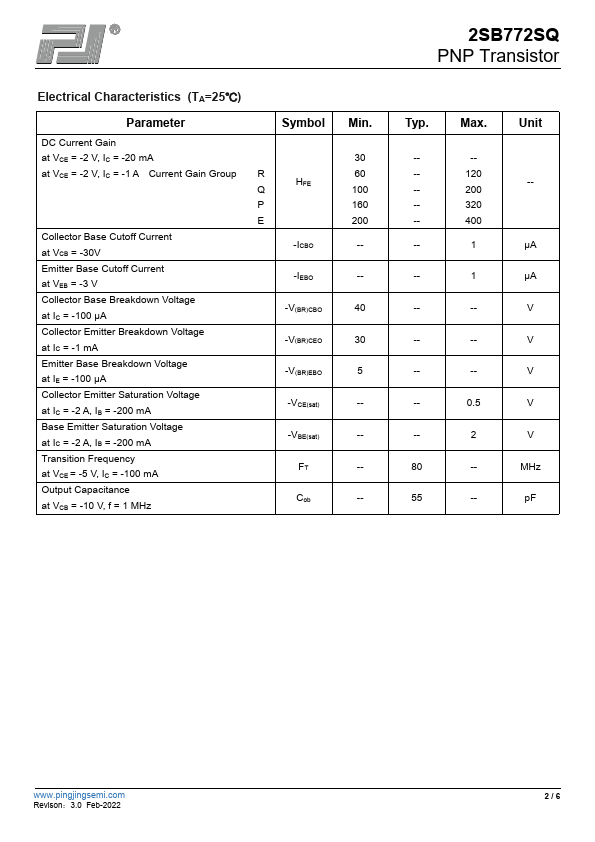

2SB772SQ Datasheet Preview — Preview of 2SB772SQ PDF

Datasheet Details

Part number: 2SB772SQ
Manufacturer: PJ
File Size: 1.21 MB
Datasheet: 2SB772SQ-PJ.pdf
Description: PNP Transistor
