MM3Z11W, MM3Z2V0W Silicon Planar Zener Diodes

Description

📥 Download Datasheet

MM3Z11W Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z11W, MM3Z2V0W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MM3Z11W, MM3Z2V0W
Manufacturer: PJ
File Size: 624.16 KB
Datasheet: MM3Z2V0W-PJ.pdf
Description: Silicon Planar Zener Diodes
Note: This datasheet PDF includes multiple part numbers: MM3Z11W, MM3Z2V0W.
Please refer to the document for exact specifications by model.

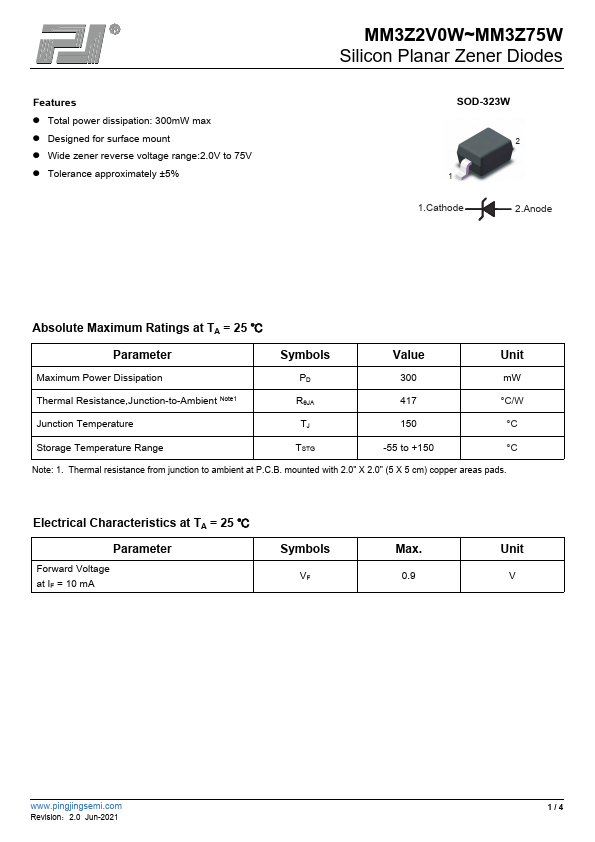

Features

* Total power dissipation: 300mW max
* Designed for surface mount
* Wide zener reverse voltage range:2.0V to 75V
* Tolerance approximately ±5% MM3Z2V0W~MM3Z75W Silicon Planar Zener Diodes SOD-323W 1 1.Cathode 2 2.Anode Absolute Maximum Ratings at TA = 25 ℃ Parameter Symbols V
