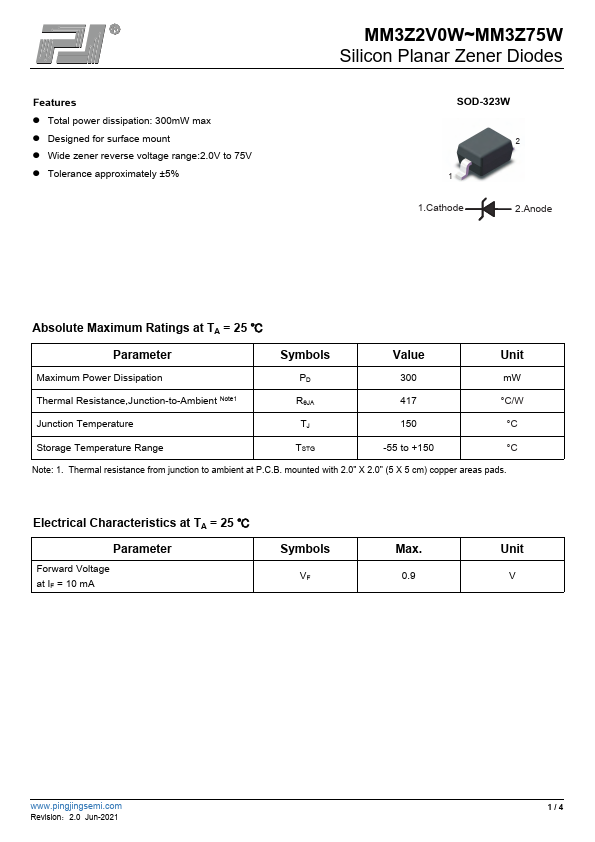

MM3Z36W Features
* Total power dissipation: 300mW max
* Designed for surface mount
* Wide zener reverse voltage range:2.0V to 75V
* Tolerance approximately ±5% MM3Z2V0W~MM3Z75W Silicon Planar Zener Diodes SOD-323W 1 1.Cathode 2 2.Anode Absolute Maximum Ratings at TA = 25 ℃ Parameter Symbols V
Datasheet Details
MM3Z36W, MM3Z2V0W
PJ
624.16 KB
Silicon planar zener diodes.
This datasheet PDF includes multiple part numbers: MM3Z36W, MM3Z2V0W.
Please refer to the document for exact specifications by model.
