78L05AC - Three-Terminal Low Current Positive Voltage Regulators

This page provides the datasheet information for the 78L05AC, a member of the 78L05A Three-Terminal Low Current Positive Voltage Regulators family.

Datasheet Summary

Description

The 78L00A Series of three terminal positive voltage regulators is available with several fixed output voltages making them useful in a wide range of applications.

Features

  • Ø High Output Current IO= 100 mA Ø Fixed Output Voltage VO= 5 V, 6 V, 8 V, 12 V, 15 V Ø Complementary Negative Regulators 79L00A Series Ø Available in either ±5% (AC) Selection DEVICE TYPE /.

📥 Download Datasheet

Datasheet preview – 78L05AC

Datasheet Details

Part number 78L05AC
Manufacturer PLANETA
File Size 77.90 KB
Description Three-Terminal Low Current Positive Voltage Regulators
Datasheet download datasheet 78L05AC Datasheet

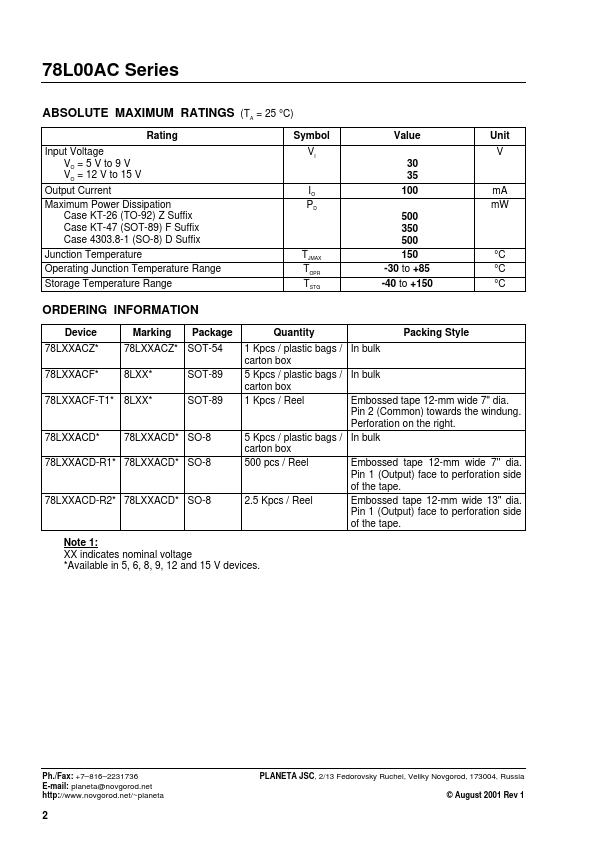

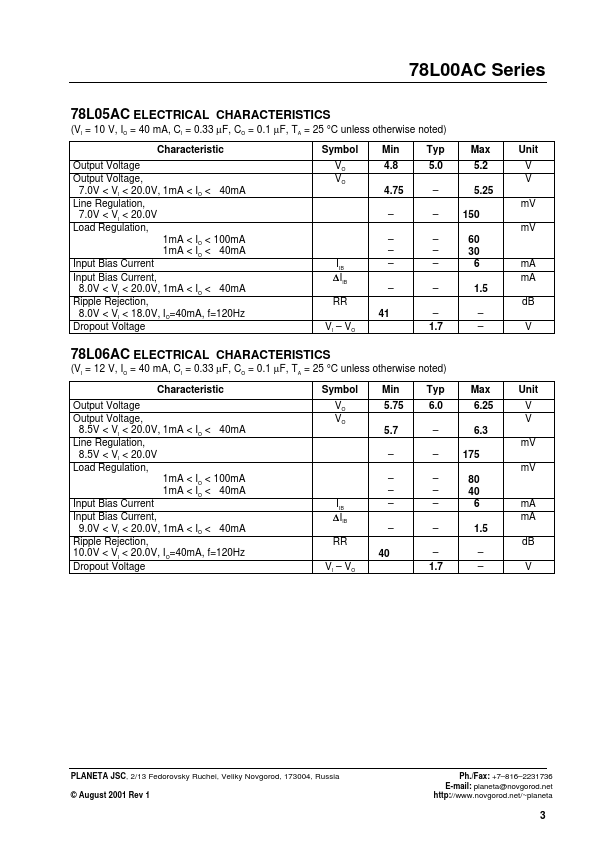

Additional preview pages of the 78L05AC datasheet.

📁 Similar Datasheet

  • 78L05AC - Positive Voltage Regulators (onsemi)
  • 78L05AC - Positive-Voltage Linear Regulators (Texas Instruments)
  • 78L05AC - POSITIVE VOLTAGE REGULATORS (STMicroelectronics)
  • 78L05ACZ - Positive Voltage Regulators (Comset Semiconductors)
  • 78L05A - Positive-Voltage Linear Regulators (Texas Instruments)
  • 78L05A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (JRC)
  • 78L05A - fixed-voltage monolithic integrated-circuit voltage regulators (STEK)
  • 78L05A - 3-Terminal 0.1A Positive Voltage Regulator (Fairchild Semiconductor)
  • 78L05A - POSITIVE VOLTAGE REGULATORS (STMicroelectronics)
  • 78L05AB - Positive Voltage Regulators (onsemi)
Other Datasheets by PLANETA
  • 78L05A - Three-Terminal Low Current Positive Voltage Regulators
  • 78L06A - Three-Terminal Low Current Positive Voltage Regulators
  • 78L06AC - Three-Terminal Low Current Positive Voltage Regulators
  • 78L08A - Three-Terminal Low Current Positive Voltage Regulators
  • 78L08AC - Three-Terminal Low Current Positive Voltage Regulators
  • 78L09A - Three-Terminal Low Current Positive Voltage Regulators
  • 78L09AC - Three-Terminal Low Current Positive Voltage Regulators
  • 78L12A - Three-Terminal Low Current Positive Voltage Regulators

Full PDF Text Transcription

Click to expand full text

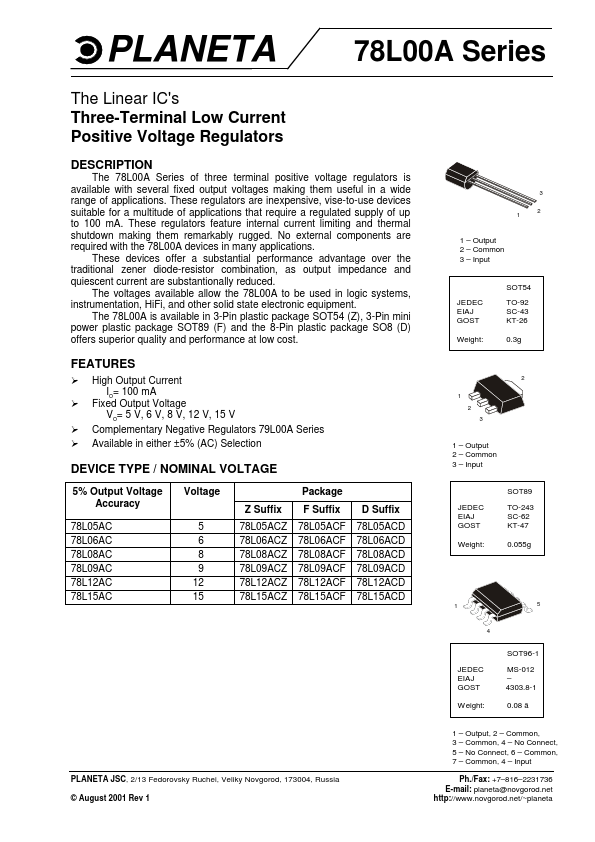

PLANETA 78L00A Series The Linear IC's Three-Terminal Low Current Positive Voltage Regulators DESCRIPTION The 78L00A Series of three terminal positive voltage regulators is available with several fixed output voltages making them useful in a wide range of applications. These regulators are inexpensive, vise-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA. These regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the 78L00A devices in many applications. These devices offer a substantial performance advantage over the traditional zener diode-resistor combination, as output impedance and quiescent current are substantionally reduced.
Published: |
