78L09AC - Three-Terminal Low Current Positive Voltage Regulators

Product Overview

Datasheet Details

Part number	78L09AC
Manufacturer	PLANETA
File Size	77.90 KB
Description	Three-Terminal Low Current Positive Voltage Regulators
Datasheet	78L09AC Datasheet
Note	This datasheet PDF includes multiple part numbers: 78L09AC, 78L05A. Please refer to the document for exact specifications by model.

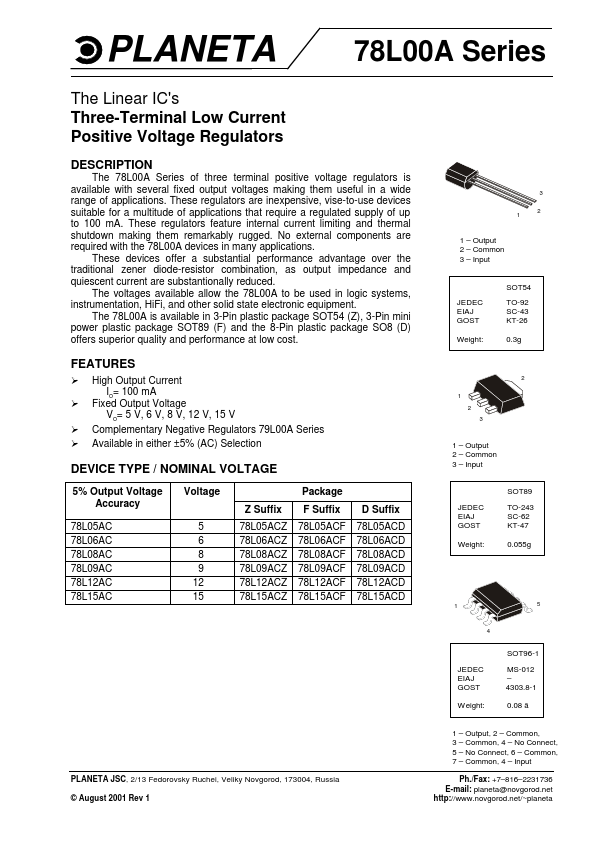

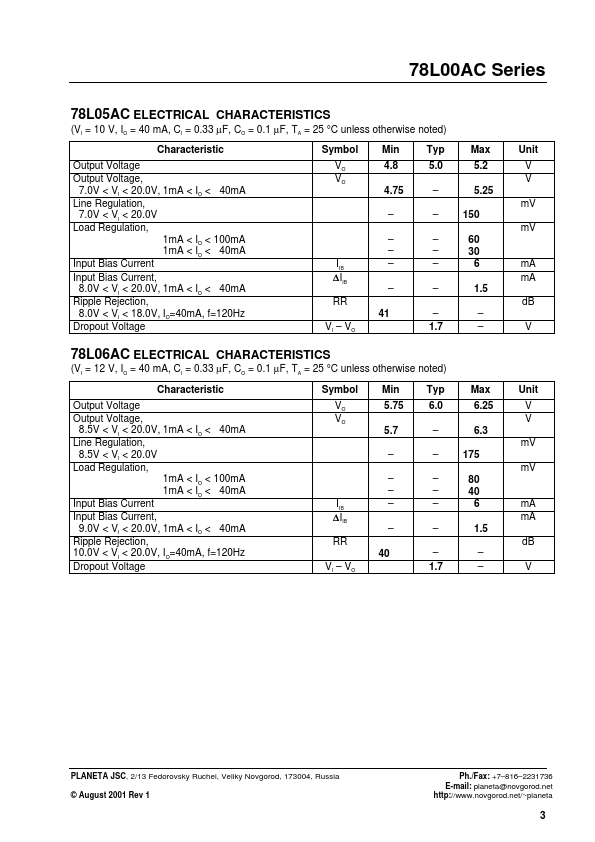

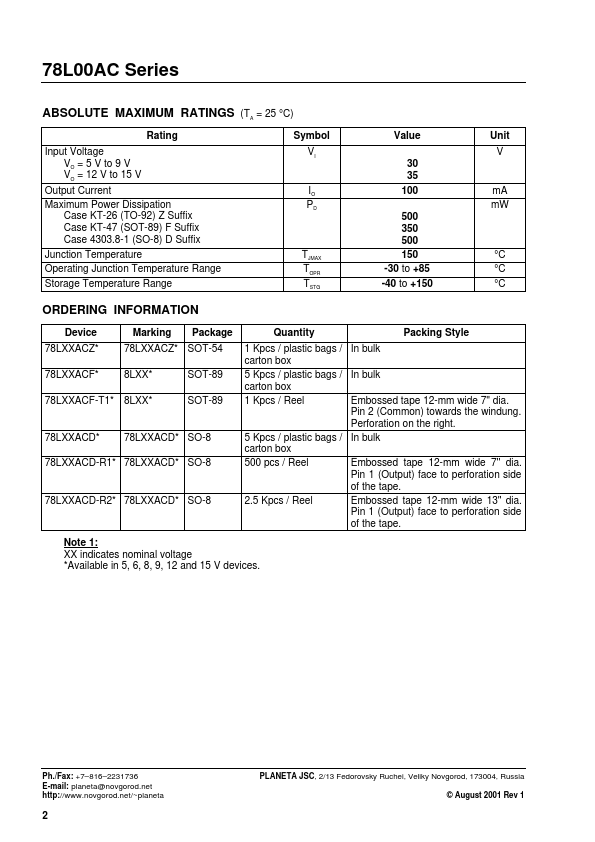

Additional preview pages of the 78L09AC datasheet.

Product details

Description

The 78L00A Series of three terminal positive voltage regulators is available with several fixed output voltages making them useful in a wide range of applications.

Features

Ø High Output Current IO= 100 mA Ø Fixed Output Voltage VO= 5 V, 6 V, 8 V, 12 V, 15 V Ø Complementary Negative Regulators 79L00A Series Ø Available in either ±5% (AC) Selection DEVICE TYPE /.
