PT3937-A - 24V Automotive Single Coil Motor Driver

Product Overview

PROLIFIC

📥 Download Datasheet

PT3937-A 24V Automotive Single Coil Motor Driver by PROLIFIC - Datasheet Preview — Datasheet preview – PT3937-A

Datasheet Details

Part number	PT3937-A
Manufacturer	PROLIFIC
File Size	1.47 MB
Description	24V Automotive Single Coil Motor Driver
Datasheet	PT3937-A Datasheet

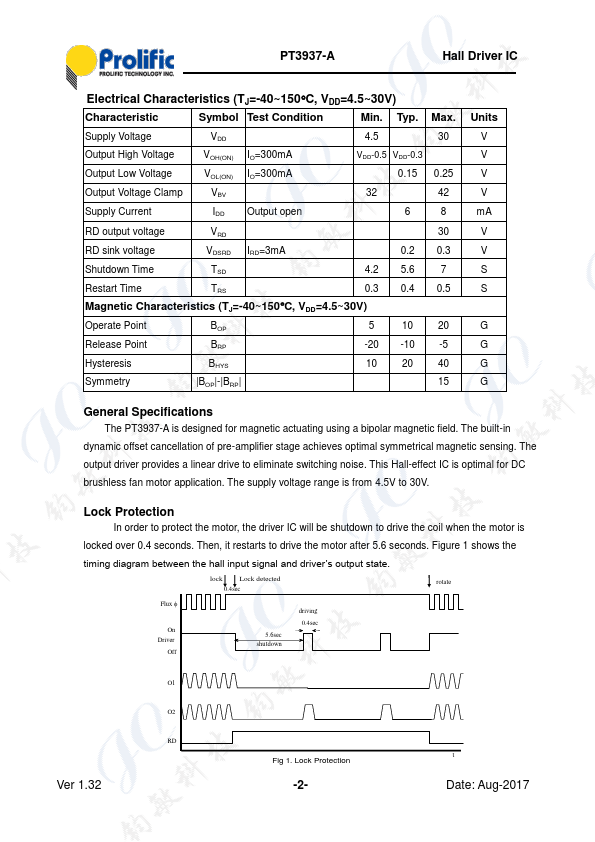

Additional preview pages of the PT3937-A datasheet.

Product details

Features

Built-in high sensitivity hall sensor.
Single phase full wave driver.
Soft switching output driver.
Motor locked protection and automatic restart.
RD output.
Built-in hysteresis comparator.
Built-in zener diode.
High balance and low thermal drift magnetic sensing.
Low power consumption and high driving efficiency.
Thermal protection.
AEC-Q100 qualified Specifications Absolute Maximum Ratings Parameter Maximum supply voltage Allowable power.
