1.0SMB120A, 1.0SMB6.8A Datasheet - PROSEMI

1.0SMB120A Surface Mount Transient Voltage Suppressor Rectifiers

1.0SMB120A Features

* Glass passivated chip

* 1000 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle):0.01 %

* Excellent clamping capability

* Low reverse leakage

* Very fast response time

* Lead and body according with RoHS standard Mechanical Data

* Case

1.0SMB6.8A-PROSEMI.pdf

This datasheet PDF includes multiple part numbers: 1.0SMB120A, 1.0SMB6.8A. Please refer to the document for exact specifications by model.

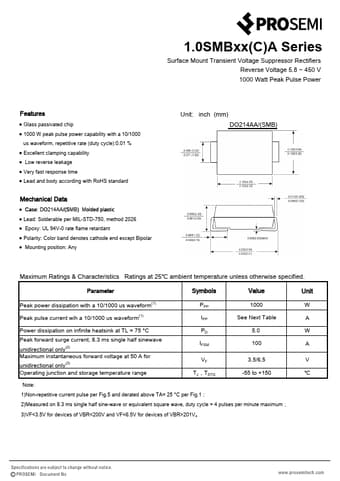

1.0SMB120A Datasheet Preview Page 2 1.0SMB120A Datasheet Preview Page 3

Datasheet Details

Part number:

1.0SMB120A, 1.0SMB6.8A

Manufacturer:

PROSEMI

File Size:

398.99 KB

Description:

Surface mount transient voltage suppressor rectifiers.

Note:

This datasheet PDF includes multiple part numbers: 1.0SMB120A, 1.0SMB6.8A.
Please refer to the document for exact specifications by model.
