SHR400R22 Datasheet - PST

SHR400R22 REVERSE CONDUCTING THYRISTORS

Technical Data : KN-001 SHR400R22(21) Fast Switching Reverse-conducting Thyristor 1300 VDRM; 630 A rms

SHR400R22 Features

* . All Diffused Structure . Interdigitated Amplifying Gate Configuration . Blocking capabilty up to 2500 volts . Guaranteed Maximum Turn-Off Time . High dV/dt Capability . Pressure Assembled Device ELECTRICAL CHARACTERISTICS AND RATINGS Blocking - Off State Device Type VDRM (1) VDSM (1) SHR400R22(

SHR400R22-PST.pdf

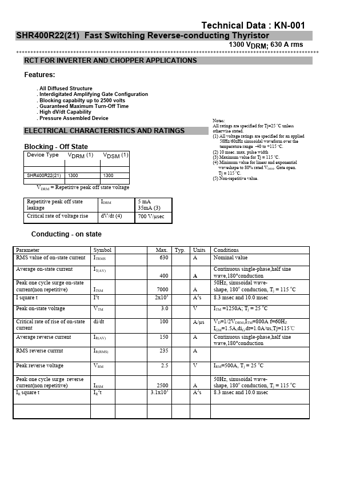

Preview of SHR400R22 PDF
SHR400R22 Datasheet Preview Page 2 SHR400R22 Datasheet Preview Page 3

Datasheet Details

Part number:

SHR400R22

Manufacturer:

PST

File Size:

161.82 KB

Description:

Reverse conducting thyristors.
