PT32C637 - SiP

Product Overview

PTC

PT32C637 SiP by PTC - Datasheet Preview — Datasheet preview – PT32C637

Datasheet Details

Part number	PT32C637
Manufacturer	PTC
File Size	628.44 KB
Description	SiP
Datasheet	PT32C637 Datasheet

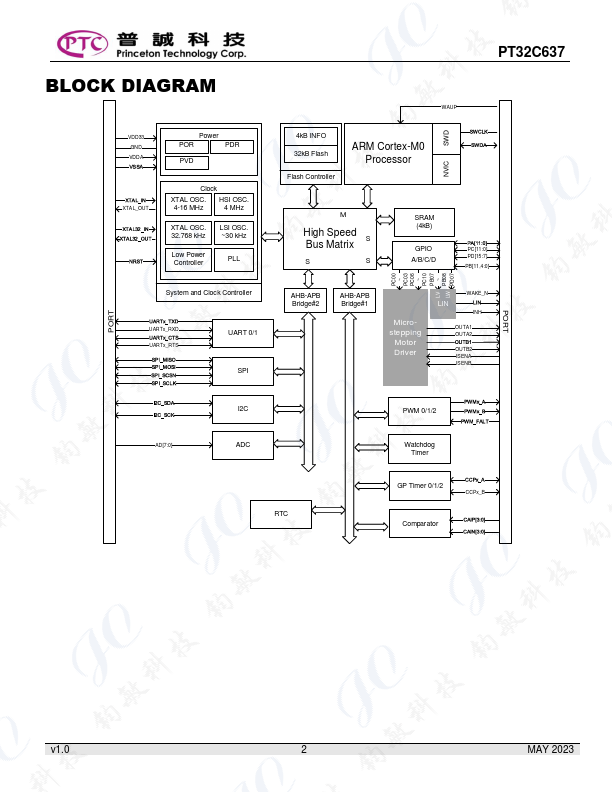

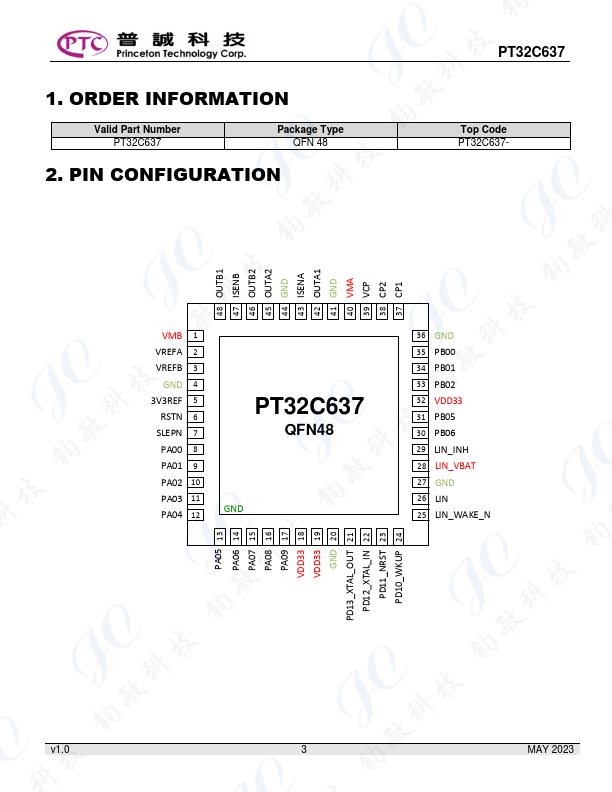

Additional preview pages of the PT32C637 datasheet.

Product details

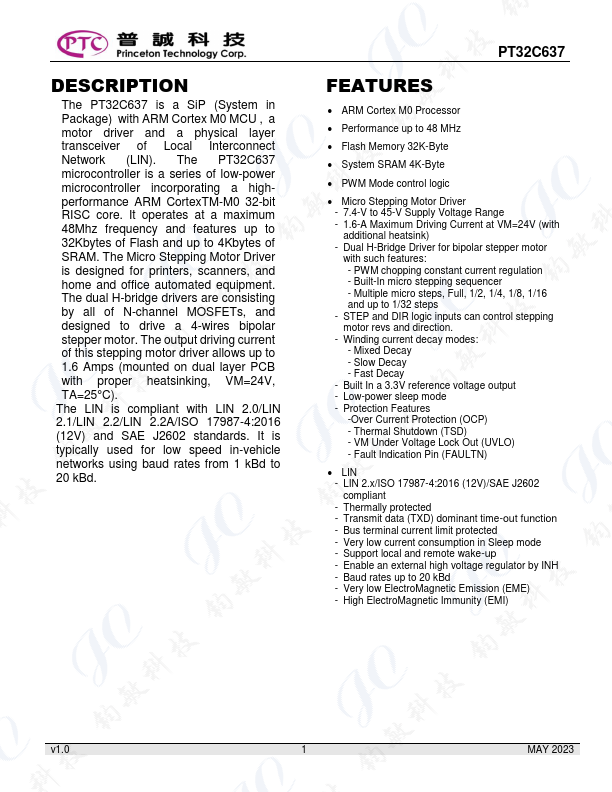

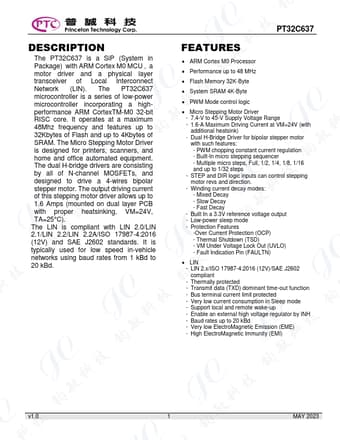

Description

The PT32C637 is a SiP (System in Package) with ARM Cortex M0 MCU , a motor driver and a physical layer transceiver of Local Interconnect Network (LIN).

Features

up to 32Kbytes of Flash and up to 4Kbytes of SRAM. The Micro Stepping Motor Driver is designed for printers, scanners, and home and office automated equipment. The dual H-bridge drivers are consisting by all of N-channel MOSFETs, and designed to drive a 4-wires bipolar stepper motor. The output driving current of this stepping motor driver allows up to 1.6 Amps (mounted on dual layer PCB with proper heatsinking, VM=24V, TA=25°C). The LIN is compliant with LIN 2.0/LIN 2.1/LIN 2.2/LIN 2.2A/ISO 179.
