P54FCT245

OCTAL TRANSCEIVER

P54FCT245 Features

* Function, Pinout and Drive Compatible with the FCT and F Logic FCT-A speed at 4.9ns max (MIL) Output levels compatible with TTL and CMOS Edge-rate control circuitry for significantly improved noise characteristics ESD protection exceeds 2000V P54FCT245/74fct245 OCTAL TRANSCEIVER WITH 3-ST

P54FCT245 General Description

The P54/74FCT245 contains eight non-inverting bidirectional buffers with 3-state outputs and is intended for bus oriented applications. The transmit/receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active HIGH) enables data from A ports to B.

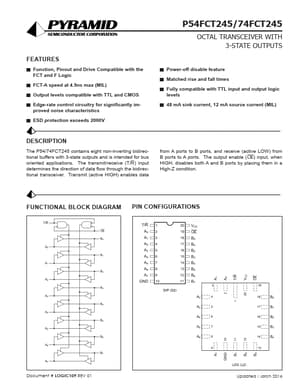

P54FCT245 Datasheet (607.25 KB)

Preview of P54FCT245 PDF

Datasheet Details

Part number:

P54FCT245

Manufacturer:

PYRAMID

File Size:

607.25 KB

Description:

Octal transceiver.
