SK25B, SK22B SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SK25B Description

SK22B thru SK210B SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 100 VOLTS CURRENT - 2.0 AMPERES .075(1.91) .083(2.11) SMB/DO-214AA .130(.

SK25B Applications

* Low profile package Built-in strain relief Metal to silicon rectifier, majority carrier conduction Low power loss, high efficiency High surge capability For use in low voltage high frequency inverters, free wheeling. and polarity protection applications High temperature soldering 260oC/10 seconds at

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK25B, SK22B. Please refer to the document for exact specifications by model.

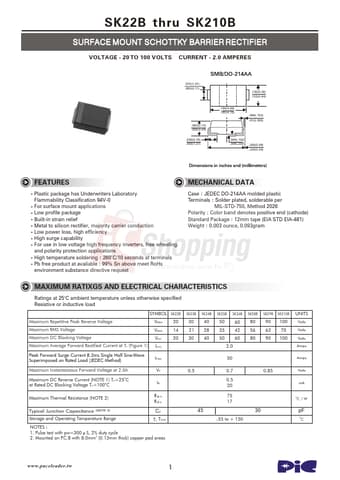

datasheet Preview Page 2

Datasheet Details

Part number
SK25B, SK22B
Manufacturer
Paceleader
File Size
214.07 KB
Datasheet
SK22B-Paceleader.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SK25B, SK22B.
Please refer to the document for exact specifications by model.
