CP5001 - HIGH CURRENT SILICON BRIDGE RECTIFIER

Pan Jit International Inc.

Datasheet Details

Part number	CP5001
Manufacturer	Pan Jit International Inc.
File Size	44.13 KB
Description	HIGH CURRENT SILICON BRIDGE RECTIFIER

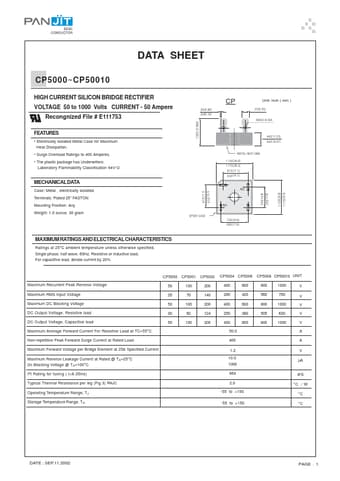

Datasheet	CP5001_PanJitInternationalInc..pdf

Electrically lsolated Metal Case for Maximum Heat Dissipation.
Surge Overload Ratings to 400 Amperes.
The plastic package has Underwriters Laboratory Flammability Classification 94V-O METAL HEAT SINK CP .034(.86) .030(.76) Unit: inch ( mm ) .25(6.35) .094(2.4) DIA 1.0(25.4) MAX .442(11.23) .432(10.97) 1.135(28.8) 1.115(28.3) .672(17.1) .632(16.1).
