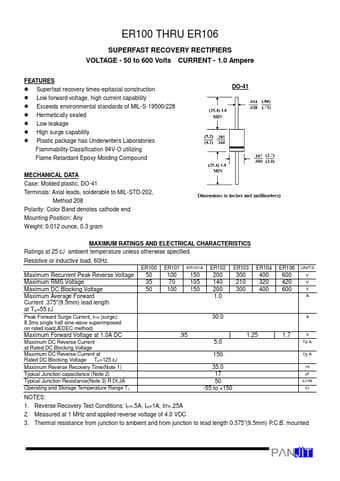

ER100 THRU ER106
SUPERFAST RECOVERY RECTIFIERS VOLTAGE - 50 to 600 Volts CURRENT - 1.0 Ampere
FEATURES l Superfast recovery times-epitaxial construction l Low forward voltage, high current capability l l l l l Exceeds environmental standards of MIL-S-19500/228 Hermetically sealed Low leakage High surge capability Plastic package has Underwriters Laboratories Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound MECHANICAL DATA Case: Molded plastic, DO-41 Terminals: Axial leads, solderable to MIL-STD-202, Method 208 Polarity: Color Band denotes cathode end Mounting Position: Any Weight: 0.012 ounce, 0.3 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ¢J ambient temperature unless otherwise specified. Resistive or inductive load, 60Hz.
