GBP300

IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER(VOLTAGE - 50 to 1000 Volts CURRENT - 3.0 Amperes)

GBP300 Features

* Plastic material has Underwriters Laboratory Flammability Classification 94V-O

* Ideal for printed circuit board technique

* Surge overload rating : 70 Amperes peak .414(10.50) .397(10.10) C .111 (2.8) GBP .581(14.75) .561(14.25) Unit: inch ( mm ) .044(1.10) .031(0.80)

GBP300 Datasheet (40.12 KB)

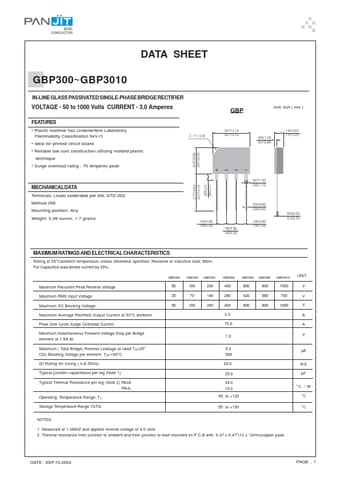

Preview of GBP300 PDF

Datasheet Details

Part number:

GBP300

Manufacturer:

Pan Jit International Inc.

File Size:

40.12 KB

Description:

In-line glass passivated single-phase bridge rectifier(voltage - 50 to 1000 volts current - 3.0 amperes).
