GBP301 Datasheet - Pan Jit International Inc.

GBP301, IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER(VOLTAGE - 50 to 1000 Volts CURRENT - 3.0 Amperes)

DATA SHEET GBP300~GBP3010 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE - 50 to 1000 Volts CURRENT - 3.0 Amperes .

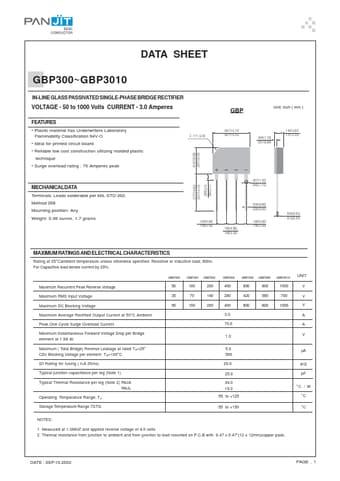

datasheet Preview Page 1 from Datasheet4u.com

GBP301_PanJitInternationalInc..pdf

GBP301 Datasheet Preview — Preview of GBP301 PDF

Datasheet Details

Part number:

GBP301

Manufacturer:

Pan Jit International Inc.

File Size:

40.12 KB

Description:

IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER(VOLTAGE - 50 to 1000 Volts CURRENT - 3.0 Amperes)

Features

* Plastic material has Underwriters Laboratory Flammability Classification 94V-O
* Ideal for printed circuit board technique
* Surge overload rating : 70 Amperes peak .414(10.50) .397(10.10) C .111 (2.8) GBP .581(14.75) .561(14.25) Unit: inch ( mm ) .044(1.10) .031(0.80)
