SB1080CT, SCHOTTKY BARRIER RECTIFIER

DATA SHEET SB1020CT~SB10100CT SCHOTTKY BARRIER RECTIFIERS VOLTAGE- 20 to 100 Volts CURRENT - 10.0 Ampere .

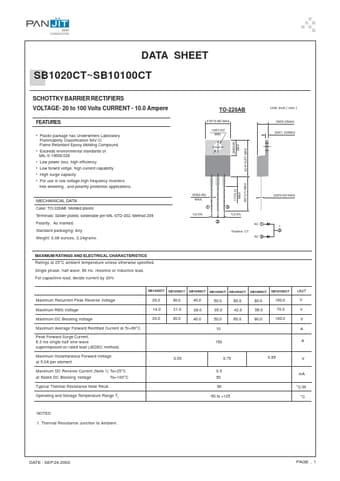

datasheet Preview Page 1 from Datasheet4u.com

SB1080CT_PanJitInternationalInc..pdf

SB1080CT Datasheet Preview — Preview of SB1080CT PDF

Datasheet Details

Part number:

SB1080CT

Manufacturer:

Pan Jit International Inc.

File Size:

39.94 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* Low power loss, high efficiency.
* Low forwrd voltge, high current capability
* High

Applications

* .177(4.5) MAX .038(0.96) MAX. TO-220AB .419(10.66) MAX .139(3.55) MIN Unit: inch ( mm ) .196(5.0)MAX .054(1.39)MAX .269(6.85) MAX .50(12.7) MAX .624(15.87) MAX .025(0.65) MAX MECHANICAL DATA Case: TO-220AB Molded plastic Terminals: Solder plated, solderable per MIL-STD-202, Method 208 Polar
