SB1640CT 16 AMPERE SCHOTTKY BARRIER RECTIFIERS

SB1640CT Description

SB1620CT THRU SB16100CT 16 AMPERE SCHOTTKY BARRIER RECTIFIERS VOLTAGE - 20 to 100 Volts CURRENT - 16.0 Amperes .

SB1640CT Features

* l Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing l l l l l Flame Retardant Epoxy Molding Compound Exceeds environmental standards of MIL-S-19500/228 Low power loss, high efficiency Low forward voltage, high current capability High surge capacity For use in lo

SB1640CT Applications

* MECHANICAL DATA Case: TO-220AB molded plastic Terminals: Lead, solderable per MIL-STD-202, Method 208 Polarity: As marked Mounting Position: Any Weight: 0.08 ounces, 2.24 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ¢J ambient temperature unless otherwise specified. Single phas

📥 Download Datasheet

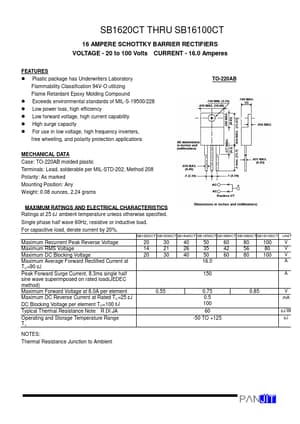

Preview of SB1640CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB1640CT
Manufacturer
Pan Jit International Inc.
File Size
57.59 KB
Datasheet
SB1640CT_PanJitInternationalInc..pdf
Description
16 AMPERE SCHOTTKY BARRIER RECTIFIERS
