SB840 - SCHOTTKY BARRIER RECTIFIERS

SB840 Description

DATA SHEET SB820~SB8100 SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts .

SB840 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MILS-19500/228
* Low power loss, high efficiency.
* Low forwrd voltge, high current capability

SB840 Applications

* .038(0.96) MAX. CURRENT - 8 Ampere TO-220AC .419(10.66) MAX .139(3.55) MIN Unit: inch ( mm ) .196(5.0) MAX .054(1.39) MAX .269(6.85) MAX .177(4.5) MAX .50(12.7) MAX .624(15.87) MAX .025(0.65) MAX MECHANICAL DATA Case: TO-220AC full molded plastic package Terminals: Lead solderable per MIL-

📥 Download Datasheet

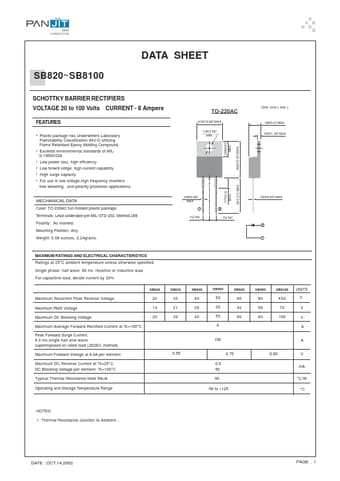

Preview of SB840 PDF
