SB840DC, D2PAK SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

A p p r o v e S h e e t Par tN umber : SB820DC~SB8 100DC art Number umber: SB820DC~SB81 DATA SHEET SB820DC~SB8100DC D 2PAK SURFACE MOUNTSCHOTTKY BARR.

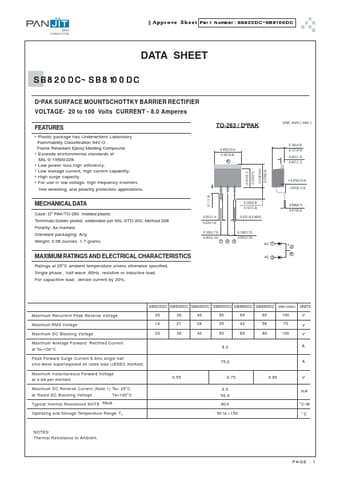

datasheet Preview Page 1 from Datasheet4u.com

SB840DC_PanJitInternationalInc..pdf

SB840DC Datasheet Preview — Preview of SB840DC PDF

Datasheet Details

Part number:

SB840DC

Manufacturer:

Pan Jit International Inc.

File Size:

46.21 KB

Description:

D2PAK SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O . Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228.
* Low power loss,high efficiency.
* Low leakage current, high current capability.

Applications

* 0.7 (1.8) TO-263 / D PAK 2 Unit: inch ( mm ) 0.409(10.4) 0.387(9.8) 0.189(4.8) 0.137(4.4) 0.055(1.4) 0.047(1.2) 4 0.418(10.6) 0.357(9.1) 0.335(8.5) 0.378(9.6) + 0.012(+ 0.3) - 0.012(- 0.3) MECHANICAL DATA Case: D PAK/TO-263 molded plastic Terminals:Solder plated, solderable per MIL-STD-202,
