1.5KE43CA, 1.5KE6.8, GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

1.5KE SERIES GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR PEAK PULSE POWER 1500 Watts BREAK DOWN VOLTAGE 6.8 to 440 Volts Recongnized Fi.

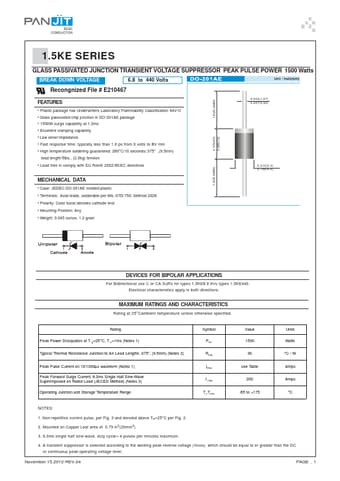

datasheet Preview Page 1 from Datasheet4u.com

1.5KE6.8-PanJitInternational.pdf

1.5KE43CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 1.5KE43CA, 1.5KE6.8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1.5KE43CA, 1.5KE6.8

Manufacturer:

Pan Jit International

File Size:

94.20 KB

Description:

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: 1.5KE43CA, 1.5KE6.8.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Glass passivated chip junction in DO-201AE package
* 1500W surge capability at 1.0ms
* Excellent clamping capability
* Low zener impedance
* Fast response time: typically

Applications

* For Bidirectional use C or CA Suffix for types 1.5KE6.8 thru types 1.5KE440. Electrical characteristics apply in both directions. MAXIMUM RATINGS AND CHARACTERISTICS Rating at 25°Cambient temperature unless otherwise specified. Rating Peak Power Dissipation at T A=25OC, T P=1ms (Notes 1) Typical Th
