1N4148GW6 - SURFACE MOUNT SWITCHING DIODE

Datasheet Summary

Features

  • Fast switching Speed.
  • Electrically identical to standard JEDEC.
  • High Conductance.
  • Surface mount package ideally suited for automatic insertion.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.
  • Green molding compound as per IEC61249 Std. . (Halogen Free) Mechanical Data.
  • Case: SOT-23 6L plastic case.
  • Terminals: Solderable per MIL-STD-750, Method 2026.
  • Approx. Weight: 0.0005 ounces, 0.014 grams.
  • Marking: DA2.

📥 Download Datasheet

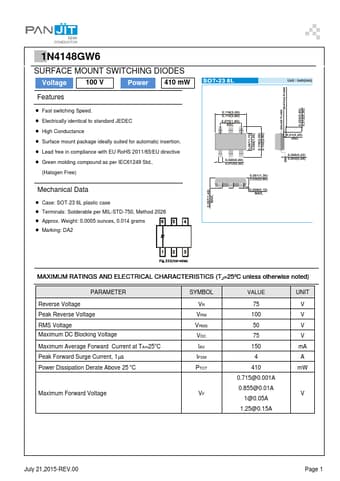

Datasheet preview – 1N4148GW6

Datasheet Details

Part number 1N4148GW6
Manufacturer Pan Jit International
File Size 263.98 KB
Description SURFACE MOUNT SWITCHING DIODE
Datasheet download datasheet 1N4148GW6 Datasheet
Additional preview pages of the 1N4148GW6 datasheet.
