BD5200S, BD540S, SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

BD540S~BD5200S SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volts CURRENT 5 Amperes .

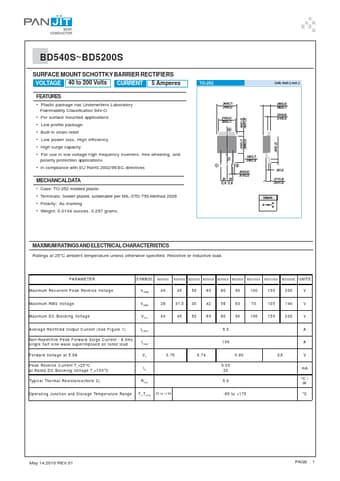

datasheet Preview Page 1 from Datasheet4u.com

BD540S-PanJitInternational.pdf

BD5200S Datasheet Preview — This datasheet PDF includes multiple part numbers: BD5200S, BD540S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD5200S, BD540S

Manufacturer:

Pan Jit International

File Size:

103.65 KB

Description:

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: BD5200S, BD540S.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief
* Low power loss, High efficiency
* High surge capacity
* For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
* In compliance with EU RoHS 2002/95/EC direct
