BD6150CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

This page provides the datasheet information for the BD6150CS, a member of the BD640CS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS family.

Datasheet Summary

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • For surface mounted.

📥 Download Datasheet

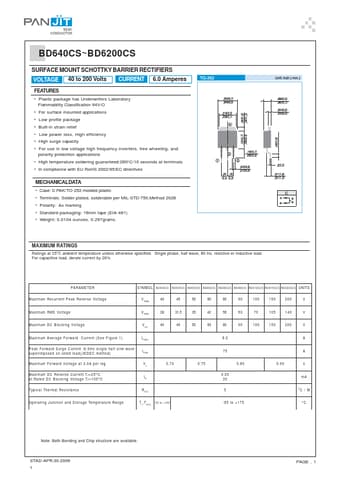

Datasheet preview – BD6150CS

Datasheet Details

Part number BD6150CS
Manufacturer Pan Jit International
File Size 173.78 KB
Description SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet BD6150CS Datasheet
Additional preview pages of the BD6150CS datasheet.

📁 Similar Datasheet

  • BD615 - NPN SILICON EPIBASE TRANSISTORS (Siemens Semiconductor Group)
  • BD615 - PNP SILICON EPIBASE TRANSISTORS (Siemens Semiconductor Group)
  • BD6155FVM - DC/DC converter for LCD back light (Rohm)
  • BD611 - NPN SILICON EPIBASE TRANSISTORS (Siemens Semiconductor Group)
  • BD611 - PNP SILICON EPIBASE TRANSISTORS (Siemens Semiconductor Group)
  • BD6111FV - negative voltage IC (Rohm)
  • BD6112FVM - Programmable negative supply IC (Rohm)
  • BD612 - PNP SILICON EPIBASE TRANSISTORS (Siemens Semiconductor Group)
  • BD61241FV - Fan Motor Driver (ROHM)
  • BD61243FV - Fan Motor Driver (ROHM)
Other Datasheets by Pan Jit International
  • BD6150CT - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • BD6100CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • BD6100CT - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • BD6200CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • BD6200CT - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • BD640CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • BD640CT - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • BD645CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr BD640CS~BD6200CS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications • Low profile package • Built-in strain relief • Low power loss, High efficiency • High surge capacity • For use in low voltage high frequency inverters, free wheeling, and polarity protection applications • High temperature soldering guaranteed:260oC/10 seconds at terminals • In compliance with EU RoHS 2002/95/EC directives 40 to 200 Volts CURRENT 6.0 Amperes MECHANICALDATA • Case: D PAK/TO-252 molded plastic • Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 • Polarity: As marking • Standard packaging: 16mm tape (EIA-481) • Weight: 0.0104 ounces, 0.297grams.
