Download the ER2001FCT datasheet PDF.
This datasheet also covers the ER2000FCT variant, as both devices belong to the same superfast recovery rectifier family and are provided as variant models within a single manufacturer datasheet.
Note: The manufacturer provides a single datasheet file (ER2000FCT_PanJitInternational.pdf) that lists specifications for multiple related part numbers.
Full PDF Text Transcription for ER2001FCT (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
ER2001FCT. For precise diagrams, tables, and layout, please refer to the original PDF.

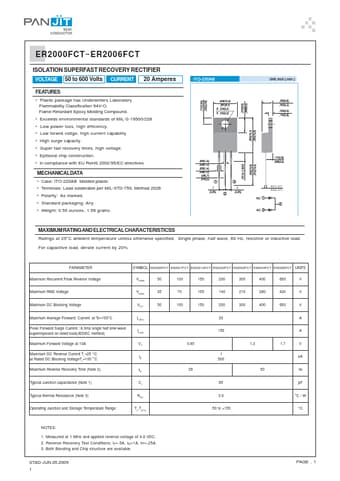

ER2000FCT~ER2006FCT ISOLATION SUPERFAST RECOVERY RECTIFIER VOLTAGE FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retarda...
View more extracted text
derwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • Low power loss, high efficiency. • Low forwrd voltge, high current capability • High surge capacity. • Super fast recovery times, high voltage. • Epitaxial chip construction. • In compliance with EU RoHS 2002/95/EC directives 50 to 600 Volts CURRENT 20 Amperes MECHANICALDATA • Case: ITO-220AB Molded plastic • Terminals: Lead solderable per MIL-STD-750, Method 2026 • Polarity: As marked. • Standard packaging: Any • Weight: 0.55 ounces, 1.56 grams. .027(.67) .022(.
ER2001FCT Datasheet
