GS1001FL - SURFACE GENERAL PURPOSE RECTIFIERS

PanJit Semiconductor

Download the GS1001FL datasheet PDF. This datasheet also covers the GS1000FL variant, as both devices belong to the same surface general purpose rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

For surface mounted.

📥 Download Datasheet

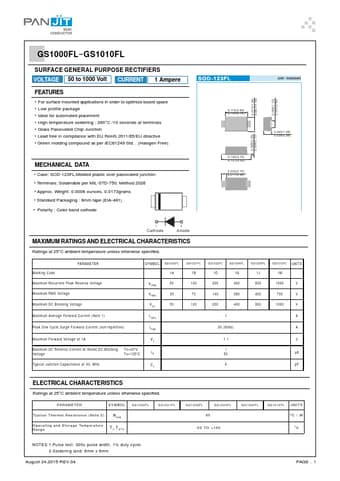

GS1001FL surface general purpose rectifiers by PanJit Semiconductor - Datasheet Preview — Note: The manufacturer provides a single datasheet file (GS1000FL-PanJitInternational.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	GS1001FL
Manufacturer	PanJit Semiconductor
File Size	103.11 KB
Description	SURFACE GENERAL PURPOSE RECTIFIERS
Datasheet	GS1001FL Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
GS1001FL	1.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE	WON-TOP ELECTRONICS
GS1001FL	SURFACE MOUNT RECTIFIER	UPM
GS1001FL	1.0A General Purpose Rectifier	DIOFIT
GS1001FL	SMALL SURFACE MOUNT SUPER FAST DIODES	TAYCHIPST
GS1001FL	1.0A Surface Mount Glass Passivated Standard Diode	SINLOON

Other Datasheets by PanJit Semiconductor

Part Number	Description
GS1000FL	SURFACE GENERAL PURPOSE RECTIFIERS
GS1002FL	SURFACE GENERAL PURPOSE RECTIFIERS
GS1004FL	SURFACE GENERAL PURPOSE RECTIFIERS
GS1004HE	SURFACE GENERAL PURPOSE RECTIFIERS
GS1006FL	SURFACE GENERAL PURPOSE RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

GS1000FL~GS1010FL SURFACE GENERAL PURPOSE RECTIFIERS VOLTAGE 50 to 1000 Volt CURRENT 1 Ampere FEATURES • For surface mounted applications in order to optimize board space • Low profile package • Ideal for automated placement • High temperature soldering : 260°C /10 seconds at terminals • Glass Passivated Chip Junction • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case: SOD-123FL,Molded plastic over passivated junction • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.0006 ounces, 0.0173grams • Standard Packaging : 8mm tape (EIA-481) • Polarity : Color band cathode 0.075(1.90) 0.067(1.70) 0.044(1.10) 0.031(0.80) 0 . 11 5 ( 2 . 9 0 ) 0.106(2.70) 0.145(3.70) 0.137(3.50) 0.
