MBR2040CT, MBR2020CT 20 AMPERES SCHOTTKY BARRIER RECTIFIERS

MBR2040CT Description

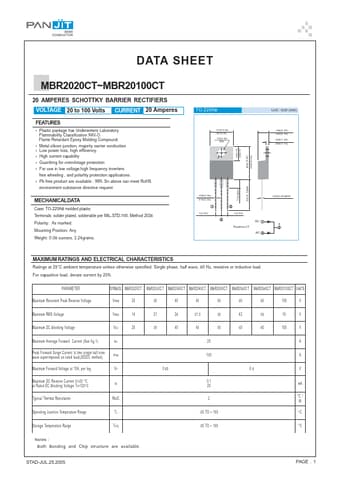

DATA SHEET MBR2020CT~MBR20100CT 20 AMPERES SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT 20 Amperes .

MBR2040CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency.
* High current capability
* Guardring for overvlot

MBR2040CT Applications

* Pb free product are available : 99% Sn above can meet RoHS environment substance directive request MECHANICALDATA Case: TO-220AB molded plastic Terminals: solder plated, solderable per MIL-STD-750, Method 2026 Polarity: As marked. Mounting Position: Any Weight: 0.08 ounces, 2.24grams. TO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2040CT, MBR2020CT. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
MBR2040CT, MBR2020CT
Manufacturer
Pan Jit International
File Size
40.97 KB
Datasheet
MBR2020CT-PanJitInternational.pdf
Description
20 AMPERES SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBR2040CT, MBR2020CT.
Please refer to the document for exact specifications by model.
