MBR840D Datasheet - Pan Jit International

MBR840D, SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

PRELIMINARY MBR840D~MBR8200D D2PAK SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER VOLTAGE 40 to 200 Volts CURRENT 8 Ampere .

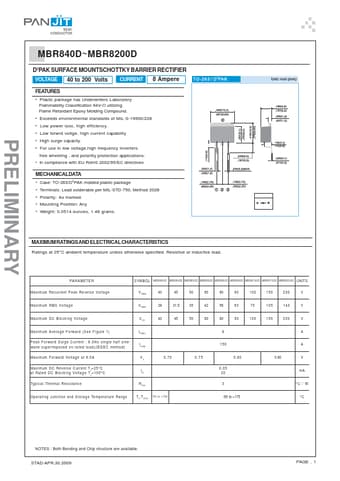

datasheet Preview Page 1 from Datasheet4u.com

MBR840D-PanJitInternational.pdf

MBR840D Datasheet Preview — Preview of MBR840D PDF

Datasheet Details

Part number:

MBR840D

Manufacturer:

Pan Jit International

File Size:

115.28 KB

Description:

SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* Low power loss, high efficiency.
* Low forwrd voltge, high current capability

Applications

* In compliance with EU RoHS 2002/95/EC directives MECHANICALDATA
* Case: TO-263/D2PAK molded plastic package
* Terminals: Lead solderable per MIL-STD-750, Method 2026
* Polarity: As marked.
* Mounting Position: Any
* Weight: 0.0514 ounces, 1.46 grams
