SB1030F, SB1045F, (SB1020F - SB10150F) SCHOTTKY BARRIER RECTIFIER

www.DataSheet4U.com DATA SHEET SB1020F~SB10150F ISOLATION SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 150 Volts CURRENT 10 Amperes .

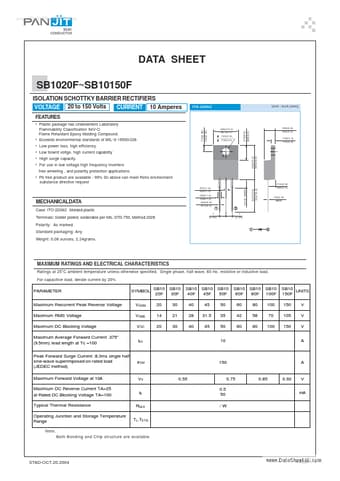

datasheet Preview Page 1 from Datasheet4u.com

SB1045F_PanJitInternational.pdf

SB1030F Datasheet Preview — This datasheet PDF includes multiple part numbers: SB1030F, SB1045F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB1030F, SB1045F

Manufacturer:

Pan Jit International

File Size:

84.49 KB

Description:

(SB1020F - SB10150F) SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SB1030F, SB1045F.
Please refer to the document for exact specifications by model.

Features

* .112(2.85) .100(2.55) .272(6.9) .248(6.3) ITO-220AC Unit : inch (mm)
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* Low power loss, high efficie

Applications

* Pb free product are available : 99% Sn above can meet Rohs environment substance directive request .406(10.3) .381(9.7) .134(3.4) .118(3.0) .189(4.8) .165(4.2) .130(3.3) .114(2.9) .606(15.4) .583(14.8) MECHANICALDATA Case: ITO-220AC Molded plastic Terminals: Solder plated, solderable
