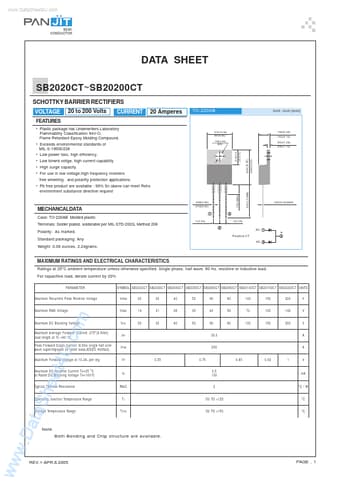

SB2080CT, SB20150CT - (SB2020CT - SB20200CT) Schottky Barrier Rectifiers

Pan Jit International

Datasheet Details

Part number	SB2080CT, SB20150CT
Manufacturer	Pan Jit International
File Size	456.72 KB
Description	(SB2020CT - SB20200CT) Schottky Barrier Rectifiers
Datasheet	SB20150CT_PanJitInternational.pdf
Note	This datasheet PDF includes multiple part numbers: SB2080CT, SB20150CT. Please refer to the document for exact specifications by model.

Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
Exceeds environmental standards of MIL-S-19500/228.
Low power loss, high efficiency.
Low forwrd voltge, high current capability.
High surge capacity.
For use in low voltage,high frequency inverters free wheeling , and polarlity protection.
