Part number:
SD1060CS
Manufacturer:
Pan Jit International
File Size:
34.94 KB
Description:
Dpak surface mount schottky barrier rectifier.
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* For surface mounted applications
* Low profile package
* Built-in strain relief
* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency

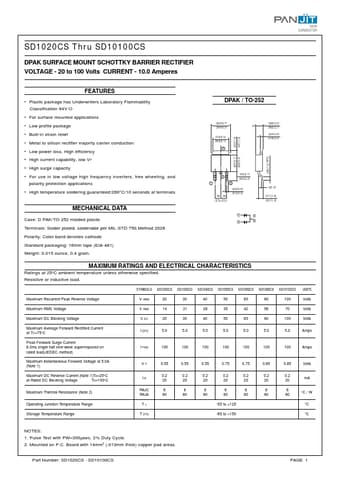

SD1060CS
Pan Jit International
34.94 KB
Dpak surface mount schottky barrier rectifier.
