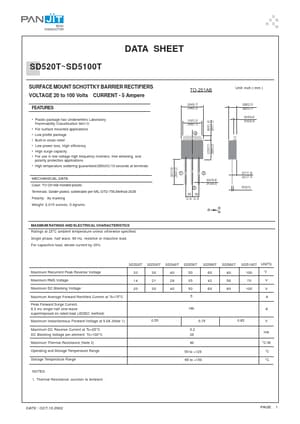

SD5100T
FEATURES
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O
- For surface mounted applications
- Low profile package
- Built-in strain relief
- Low power loss, High efficiency
- High surge capacity
- For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
.307(7.8) .283(7.2) .225(5.7) .209(5.3)
TO-251AB
.264(6.7) .248(6.3) .216(5.5) .200(5.1) 4
Unit: inch ( mm )
CURRENT
- 5 Ampere
.098(2.5) .082(2.1) .024(0.6) .016(0.4)
- High temperature soldering guaranteed:260¢XC/10 seconds at terminals
.063(1.6) .047(1.2)
3 .032(0.8) .012(0.3)
MECHANICAL DATA
Case: TO-251AB molded plastic Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 Polarity: As marking Weight: 0.015 ounces, 0.4grams.
.071(1.8) .051(1.3) .02(0.5)
2 .09 .09 (2.3) (2.3)
2 4
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive...
