SD820T, SD880T, (SD820T - SD8150T) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

www.DataSheet4U.com SD820T~SD8150T SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS 8 Ampere CURRENT VOLTAGE 20 to 150 Volts .

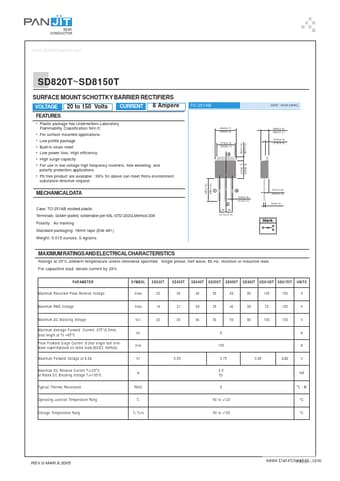

datasheet Preview Page 1 from Datasheet4u.com

SD880T_PanJitInternational.pdf

SD820T Datasheet Preview — This datasheet PDF includes multiple part numbers: SD820T, SD880T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD820T, SD880T

Manufacturer:

Pan Jit International

File Size:

457.19 KB

Description:

(SD820T - SD8150T) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SD820T, SD880T.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief
* Low power loss, High efficiency
* High surge capacity
* For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
* Pb free product are available : 99% Sn above
