SD860YS, SD880YS Datasheet - Pan Jit International

SD860YS, SD880YS, (SD820YS - SD8100YS) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

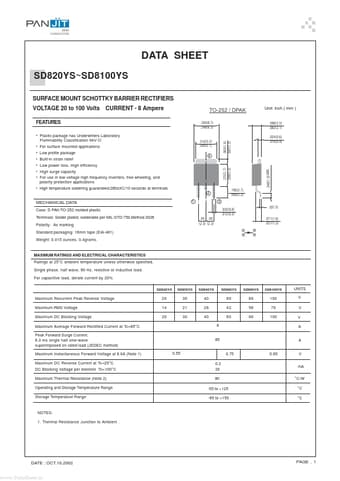

DATA SHEET SD820YS~SD8100YS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts .

SD880YS_PanJitInternational.pdf

SD860YS Datasheet Preview — This datasheet PDF includes multiple part numbers: SD860YS, SD880YS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD860YS, SD880YS

Manufacturer:

Pan Jit International

File Size:

58.21 KB

Description:

(SD820YS - SD8100YS) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SD860YS, SD880YS.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief
* Low power loss, High efficiency .225(5.7) .209(5.3) CURRENT - 8 Ampere TO-252 / DPAK .264(6.7) .248(6.3) .216(5.5) .200(5.1) 4 Unit: inch ( mm ) .098(2.5) .082(2.1) .024(0.6) .016(0.4) .063(1.6) .047(1.2)
* High su
