SR28 MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SR28 Description

SR22 THRU SR29 MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 90 Volts CURRENT - 2.0 Amperes .

SR28 Applications

* Low profile package Built-in strain relief Metal to silicon rectifier majority carrier conduction Low power loss, High efficiency High current capability, low VF High surge capacity For use in low voltage high frequency inverters, free wheeling, and polarity protection applications High temperature

📥 Download Datasheet

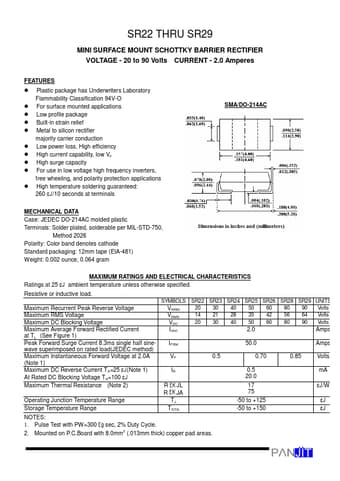

Preview of SR28 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SR28
Manufacturer
Pan Jit International
File Size
58.68 KB
Datasheet
SR28_PanJitInternationalInc..pdf
Description
MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
