SVM1550U - Low VF Schottky Rectifier

Features

Ideal for automated placement.
Low forward voltage drop, low power losses.
High efficiency operation.
Low thermal resistance.
Ultra thin profile package for space constrained utilization.
Package suitable for automated handling 0.128(3.25) 0.085(2.15) 0.172(4.35) 0.167(4.25) 0.048(1.20) 0.039(1.00) 50 Volts.

Pan Jit International

Datasheet Details

Part number	SVM1550U
Manufacturer	Pan Jit International
File Size	241.64 KB
Description	Low VF Schottky Rectifier
Datasheet	SVM1550U Datasheet

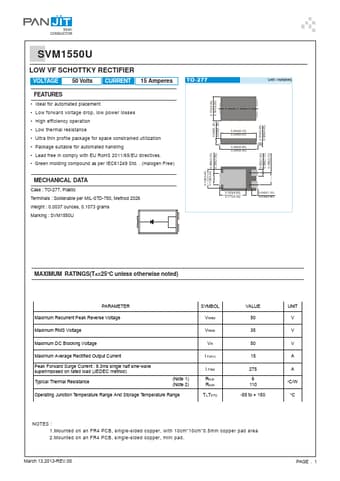

Additional preview pages of the SVM1550U datasheet.
