MBR1090FCT, MBR1040FCT, 10 AMPERES SCHOTTKY BARRIER RECTIFIERS

MBR1040FCT SERIES 10 AMPERES SCHOTTKY BARRIER RECTIFIERS VOLTAGE .

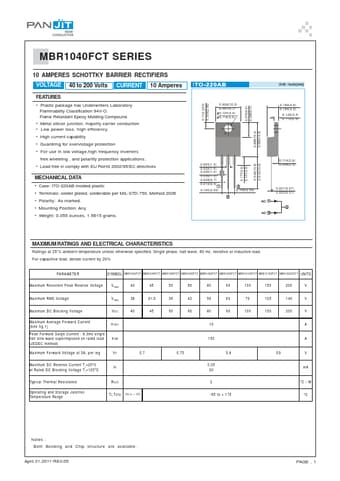

datasheet Preview Page 1 from Datasheet4u.com

MBR1040FCT-PanJit.pdf

MBR1090FCT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR1090FCT, MBR1040FCT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR1090FCT, MBR1040FCT

Manufacturer:

Pan Jit

File Size:

111.89 KB

Description:

10 AMPERES SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: MBR1090FCT, MBR1040FCT.
Please refer to the document for exact specifications by model.

Features

* 0.112(2.85) 0.100(2.55) 0.134(3.4) 0.118(3.0) 0.272(6.9) 0.248(6.3) 40 to 200 Volts CURRENT 10 Amperes
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Metal silicon junction, majority carrier conduction

Applications

* Lead free in comply with EU RoHS 2002/95/EC directives 0.406(10.3) 0.381(9.7) 0.189(4.8) 0.165(4.2) 0.130(3.3) 0.114(2.9) 0.606(15.4) 0.583(14.8) MECHANICAL DATA
* Case: ITO-220AB molded plastic
* Terminals: solder plated, solderable per MIL-STD-750, Method 2026
