MBR145, MBR140, (MBR140 - MBR1200) Schottky Barrier Rectifiers

MBR140~MBR1200 SCHOTTKY BARRIER RECTIFIERS VOLTAGE .

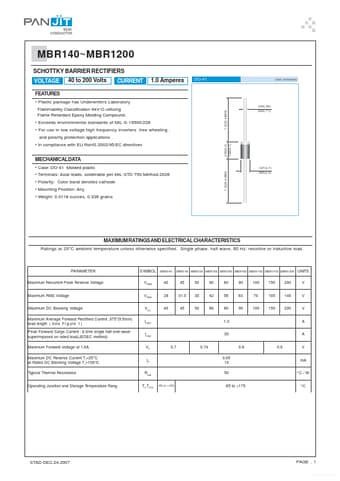

datasheet Preview Page 1 from Datasheet4u.com

MBR140-PanJit.pdf

MBR145 Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR145, MBR140. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR145, MBR140

Manufacturer:

Pan Jit

File Size:

66.43 KB

Description:

(MBR140 - MBR1200) Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: MBR145, MBR140.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory 1.0(25.4)MIN. 40 to 200 Volts CURRENT 1.0 Amperes DO-41 Unit: inch(mm) Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* For use in low

Applications

* .
* In compliance with EU RoHS 2002/95/EC directives .034(.86) .028(.71) MECHANICALDATA
* Case: DO-41 Molded plastic 1.0(25.4)MIN. .107(2.7) .080(2.0)
* Terminals: Axial leads, solderable per MIL-STD-750,Method 2026
* Polarity: Color band denotes cathode
