* High breakdown voltage, and high reliability through the use of a glass passivation layer
* High-speed switching
* Wide safe oeration area 26.5±0.5 (23.4) (2.0) 5˚ (4.0) 2.0±0.2 1.1±0.1 0.7±0.1 5.45±0.3 10.9±0.5 5.5±0.3 5˚ 5˚
* Absolute Maximum Ratings TC = 25°C Pa
2SC6012
Panasonic Semiconductor
89.03 KB
Silicon npn triple diffusion power transistor.

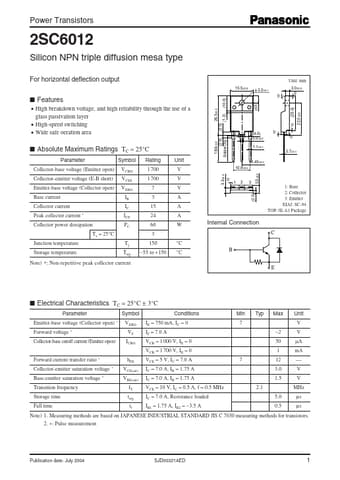

Power Transistors
2SC6012
Silicon NPN triple diffusion mesa type
For horizontal deflection output
15.5±0.5
(10.0)
Unit: mm
φ 3.2±0.1 5˚
(4.5)
3.0±0.
