Pin No.
1 2 3 4 5 6 7 8 Pin name CDS output (9dB) Blanking pulse input CCD signal input VCC Sampling pulse input (2) Sampling pulse input (1) GND CDS output (6dB) s Block Diagram 6dB OUT 8 GND 7 SP1 6 SP2 5 + 6dB + 9dB * * BLK S/H BIAS 50kΩ S/H 1 2 3 4 9dB OUT BLK S

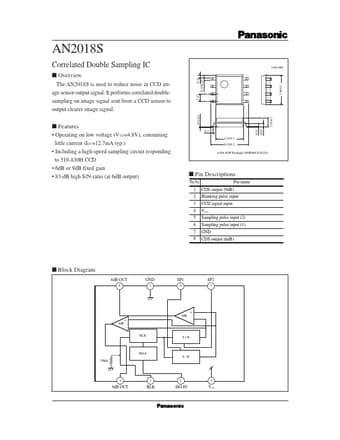

AN2018S Correlated Double Sampling IC s Overview The AN2018S is used to reduce noise in CCD image sensor output signal.
It performs correlated doublesampling on image signal sent from a CCD sensor to output clearer image signal.
0.4 0.4±0.25 5.0±0.3 0.3 4.2±0.3 6.5±0.3 8-Pin SOP Package (SOP008-P-0225) Unit:mm 0.1±0.1 1.27 Operating on low voltage (V CC=4.8V), consuming little current (ICC =12.7mA typ.) Including a high-speed sampling circuit responding to 510-830H CCD
AN2018S Features
* 1.5±0.2 s Absolute Maximum Ratings Parameter Supply voltage Supply current Power dissipation Operating ambient temperature Note 1) Storage temperature Note 1) Symbol VCC ICC Rating 5.5 18 99
* 20 to +70
* 55 to +125 Unit V mA mW ˚C ˚C PD Topr Tstg Note 1) Ta=25˚C except operating
AN2018S_PanasonicSemiconductor.pdf
Datasheet Details
AN2018S
Panasonic Semiconductor
28.67 KB
Correlated double sampling ic.
