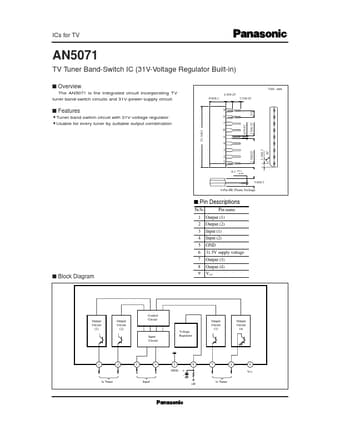

AN5071 Datasheet, Band-Switch, Panasonic Semiconductor

AN5071 Features

• Band-switch
• Tuner band switch circuit with 31V-voltage regulator
• Usable for every tuner by suitable output combination s Block Diagram 2.4±0.25 6.0±0.3 3.3±0.25 Unit : mm 1

PDF File Details

Part number:

AN5071

Manufacturer:

Panasonic Semiconductor

File Size:

28.66kb

Download:

📄 Datasheet

Description:

Tv tuner band-switch. Pin No. Pin name 1 Output (1) 2 Output (2) 3 Input (1) 4 Input (2) 5 GND 6 31.5V supply voltage 7 Output (3) 8 Output (4)

TAGS

AN5071

Panasonic Semiconductor
