* Noise canceller circuit built-in (with lock-out preventive circuit)
* The duty of a horizontal output pulse can be changed by the external bias.
* Horizontal oscillation frequency : max. 120kHz
* X-ray protector built-in (shutdown)
* Vertical drive circuit

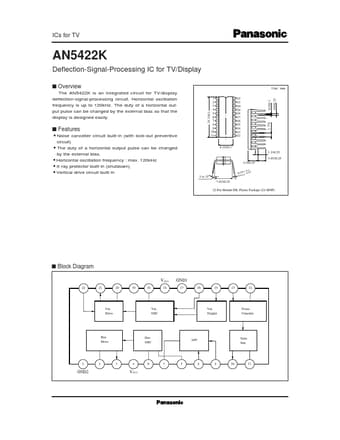

AN5422K
Panasonic Semiconductor
37.58 KB
Deflection signal processor.
ICs for TV
AN5422K
Deflection-Signal-Processing IC for TV/Display
s Overview
The AN5422K is an integrated circuit for TV/display deflection-signal-pr.
