AN5764N

Horizontal picture position controller

AN5764N Features

* CRT monitor position control

* Built-in low voltage output circuit

* Built-in DC control circuit (7.80) 22.00±0.30 (0.83) 0.60 2.54 ±0.10 (1.20) 1.80±0.20 0.35 +0.10

* 0.05 3.50±0.30 s Applications

* CRT monitor 16.90±0.30 HSIP007-P-0000 s Block Diagr

AN5764N General Description

Pin No. 1 2 3 4 5 6 7 VCC Constant voltage output (3 V) Control input GND Out1 (Positive output) N.C. Out2 (Negative output) Description Note) The fin is at the same potential as GND. GND 4 1 AN5764N s Absolute Maximum Ratings Parameter Supply voltage Supply current Power dissipation
*2

AN5764N Datasheet (49.94 KB)

Preview of AN5764N PDF

Datasheet Details

Part number:

AN5764N

Manufacturer:

Panasonic Semiconductor

File Size:

49.94 KB

Description:

Horizontal picture position controller.

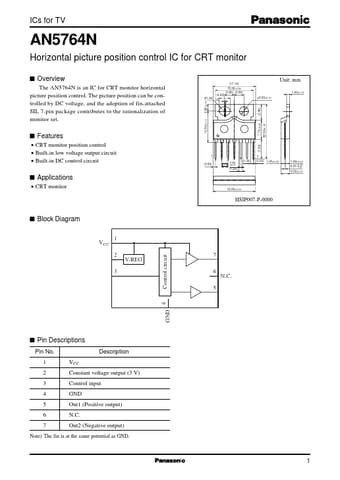

ICs for TV AN5764N Horizontal picture position control IC for CRT monitor s Overview The AN5764N is an IC for CRT monitor horizontal picture position.
