AN6472NFBP - Cordless Telephone Speech Network IC Incorporating Cross-Point Switch

Description

Pin No.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 Ground Line power (+) input Side-tone adjustment Line voltage control (1) Int.

ref.

Features

  • The speech block can operate on line voltage, with no external power supply, and is operational even during a commercial power failure.
  • Incorporates a receiver noise reducing function to improve the handset's howling margin.
  • Incorporates auto. PAD, dial mute, DC voltage regulation, and other basic speech functions.
  • The cross-point switch can be operated independently.
  • Each output of the cross-point switch can correspond to multiple inputs, allowi.

📥 Download Datasheet

Datasheet Details

Part number AN6472NFBP
Manufacturer Panasonic
File Size 216.81 KB
Description Cordless Telephone Speech Network IC Incorporating Cross-Point Switch
Datasheet download datasheet AN6472NFBP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AN64 CMOS Gate Array AMI
AN6400FA Pager Direct Conversion FSK Demodulator Bass-Band IC Panasonic
AN6401NFA Pager Direct Conversion FSK Demodulator Bass-Band IC Panasonic
AN6402 350KHz Synchronous Step-Down DC/DC Converter AnaNavi
AN642 Analog-to-Digital Converter Captures 1Gsps Maxim Integrated Products

Other Datasheets by Panasonic

Part Number Description
AN6425 Speech Network Circuit
AN6425K Speech Network Circuit
AN6426NK Hands-free Speech Network IC
AN6448NFBP Speech Network IC Incorporating Cross-Point Switch
AN6454SH Pager Direct Conversion FSK Demodulator Mixer IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

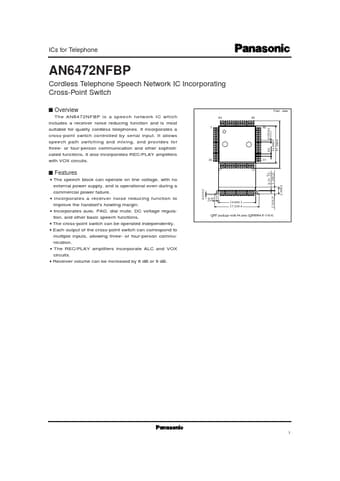

ICs for Telephone AN6472NFBP Cordless Telephone Speech Network IC Incorporating Cross-Point Switch s Overview The AN6472NFBP is a speech network IC which includes a receiver noise reducing function and is most suitable for quality cordless telephones. It incorporates a cross-point switch controlled by serial input. It allows speech path switching and mixing, and provides for three- or four-person communication and other sophisticated functions. It also incorporates REC/PLAY amplifiers with VOX circuits. 64 1 49 0.8 0.35±0.1 14.0±0.3 17.2±0.4 0.15 –0.05 1.3±0.25 1.3±0.25 2.8±0.2 0.55 14.0±0.3 17.2±0.4 QFP package with 64 pins (QFH064-P-1414) +0.
