AN7017S - FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder

Datasheet Summary

Description

Pin No.

GND pin Used for RF amp.

/Mixer.

Features

  • Low current consumption.
  • Band switching circuit built-in.
  • A single chip integrating FM/TV band.
  • IF amp. built-in AN7017SB 1 0.1±0.1 0.5 s Block Diagram VCC1 16 15 14 13 12 11 10 VCC2 9 FM L.
  • OSC TV RF Amp. FM RF Amp. Mix. TV L.
  • OSC IF Amp. TV/ FM SW 1 2 3 4 GND 5 6 7 0.1±0.1 8 GND 16-Lead SOP Package (SOP016-P-0225) ICs for FM/AM Tuner s Absolute Maximum Ratings (Ta=25˚C) Parameter Supply Voltage Supply Current Power Dissipat.

📥 Download Datasheet

Datasheet preview – AN7017S

Datasheet Details

Part number AN7017S
Manufacturer Panasonic Semiconductor
File Size 64.18 KB
Description FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder
Datasheet download datasheet AN7017S Datasheet
Additional preview pages of the AN7017S datasheet.

📁 Similar Datasheet

  • AN701 - Designing High-Frequency DC-to-DC Converters With the Si9114A Switchmode Controller (Vishay Siliconix)
  • AN7015S - Low Voltage Dual PreAmplifier Circuit (Panasonic)
  • AN7000 - Stereo Tuner (Matsushita)
  • AN7001 - Stereo Tuner System (Matsushita)
  • AN7002K - Single Chip ICs for AM Radio (Panasonic)
  • AN7002S - Single Chip ICs for AM Radio (Panasonic)
  • AN702 - Efficient Isdn Power Converters Using The Si9100 (Vishay Intertechnology)
  • AN7024 - AM Tuner / FM IF+MPX (Panasonic)
  • AN7025K - AM Tuner / FM IF + FM MPX (Panasonic)
  • AN703 - Designing DC/DC Converters (Vishay Intertechnology)
Other Datasheets by Panasonic Semiconductor
  • AN7017SB - FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder
  • AN7017 - FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder
  • AN706 - High Voltage Input Amplifier Circuit for Hi-Fi Power Amplifier
  • AN7060 - HIGH VOLTAGE INPUT AMPLIFIER CIRCUIT FOR HI FI POWER AMPLIFIER
  • AN7062N - High Voltage Input Amplifier
  • AN7072 - HIGH VOLTAGE AUDIO AMPLIFIER MUTING CIRCUIT
  • AN7077Z - Power supply and boost IC for class-H power amplifier
  • AN7082K - PRE/POWER AMPLIFIER GOVERNOR SINGLE CHIP IC FOR 3V HEADPHONE STEREO

Full PDF Text Transcription

Click to expand full text

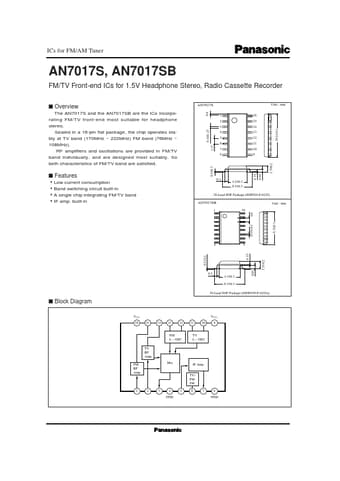

ICs for FM/AM Tuner AN7017S, AN7017SB FM/TV Front-end ICs for 1.5V Headphone Stereo, Radio Cassette Recorder s Overview The AN7017S and the AN7017SB are the ICs incorporating FM/TV front-end most suitable for headphone stereo. Sealed in a 16-pin flat package, the chip operates stably at TV band (170MHz ~ 222MHz) FM band (76MHz ~ 108MHz). RF amplifiers and oscillations are provided in FM/TV band individually, and are designed most suitably. So both characteristics of FM/TV band are satisfied. AN7017S 0.4 1 2 3 0.4±0.25 4 5 1.27 6 7 8 16 15 14 13 12 11 10 9 1.5±0.2 0.3 4.2±0.3 6.5±0.3 0.15 0.65 Unit : mm 16 0.8 8 9 0.15 0.35±0.1 4.3±0.3 6.3±0.3 16-Lead SOP Package (SSOP016-P-0225a) 0.65 1.5±0.2 6.5±0.3 10.1±0.
